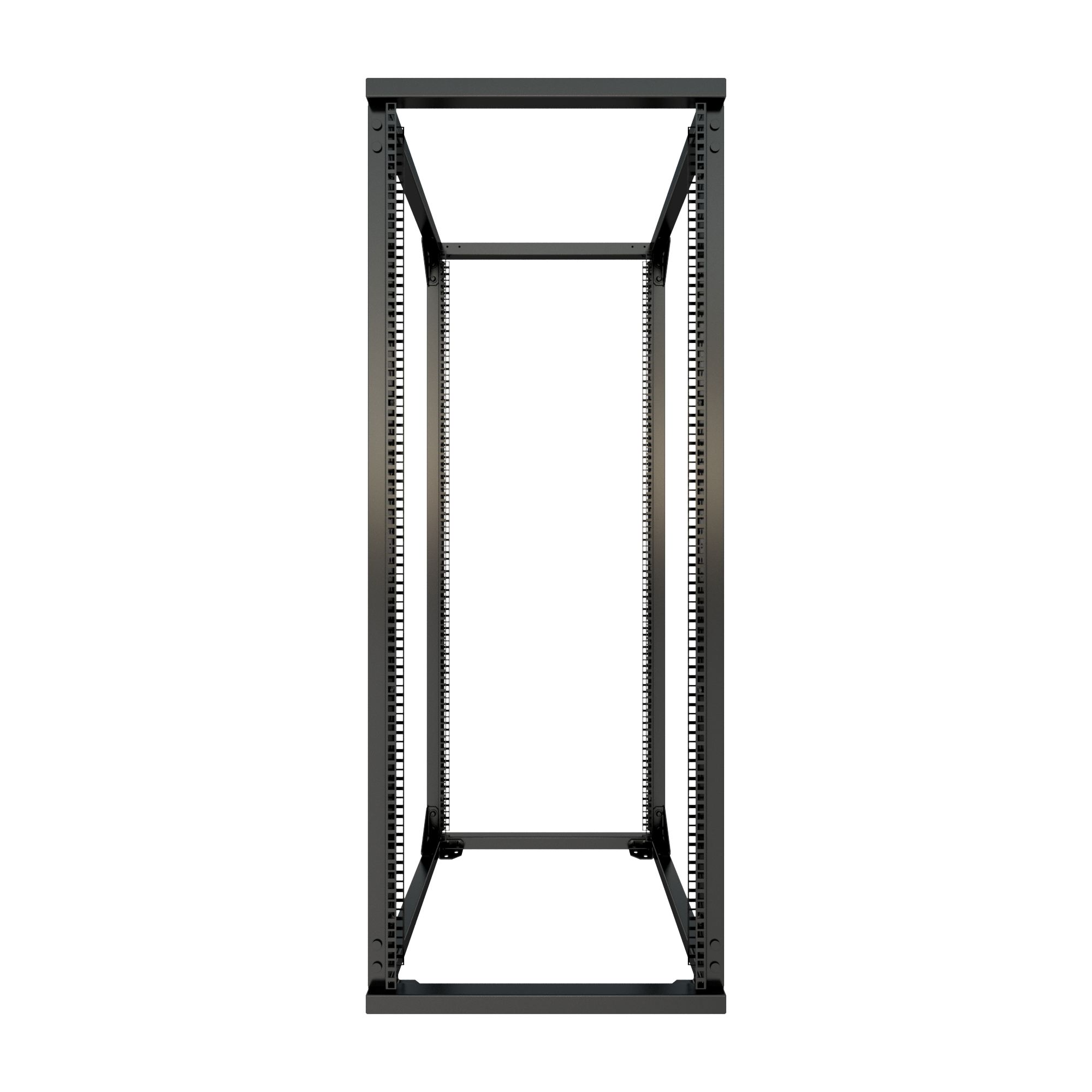

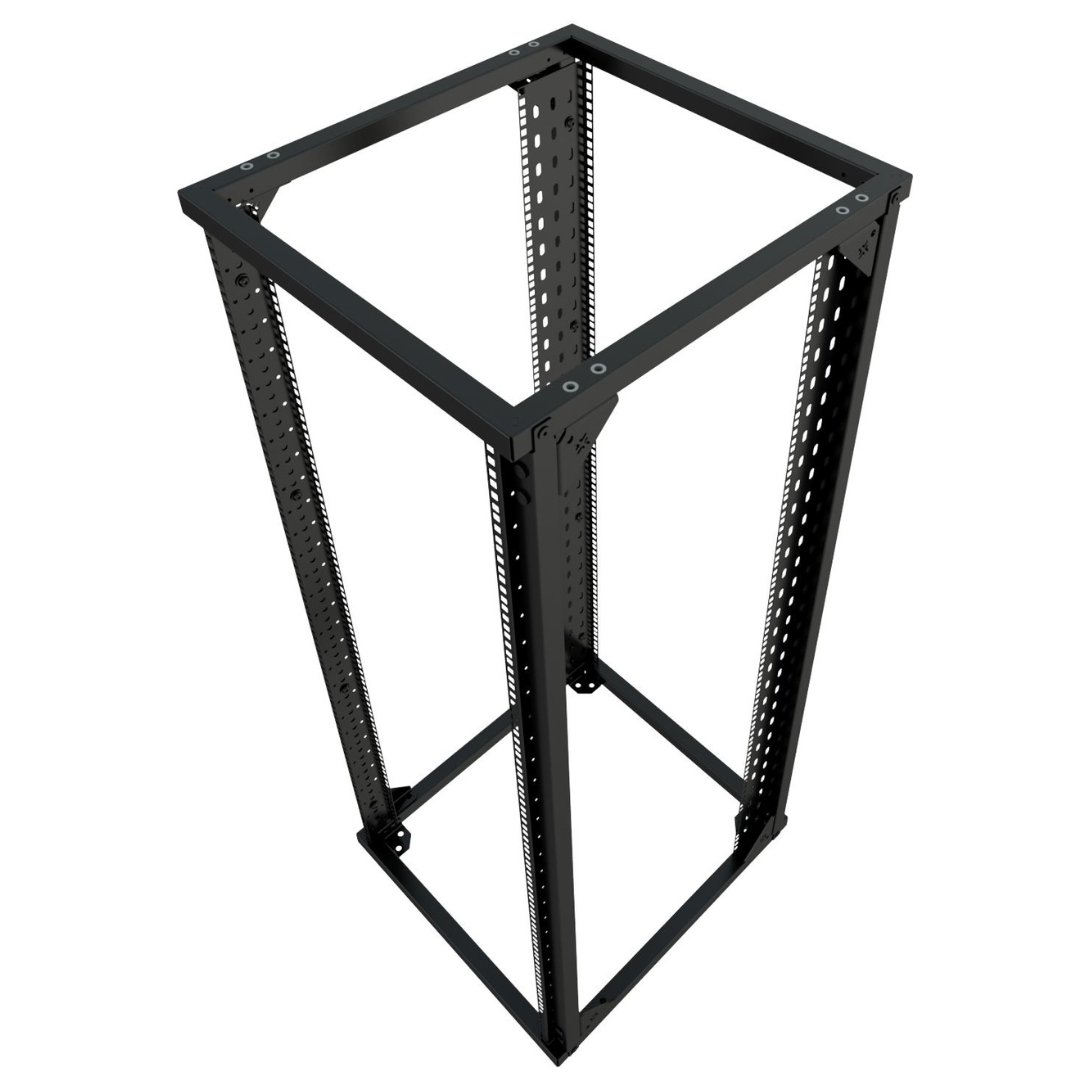

MOD-590
19″ Robust Modular Frame Rack
Heavy-duty open frame rack constructed from robust steel tubulars, precision-jointed for exceptional structural integrity. Features a unique modular design allowing for customization - the base section can be permanently floor-mounted while the upper section remains removable for easy maintenance and installation flexibility. Ideal for demanding ProAV and IT environments requiring maximum accessibility and strength.
Technical Specifications
- Rack Units
- Available in 22-42 RU
- Width
- 550mm
- Depth
- 590mm
- Load Capacity
- 600kg
Key Features
- Robust steel tubular construction
- Jointed frame design for strength
- Modular two-part configuration
- Floor-mountable base section
- Removable upper section available on request
- Available from 18U to 42U
- Custom height configurations available
Available Configurations
| Model | Rack Units | Depth | Width | Height | Load Capacity | Action |
|---|---|---|---|---|---|---|
| V-MOD-590-22U | 22U | 590mm | 550mm | 1050mm | 600kg | |
| V-MOD-590-27U | 27U | 590mm | 550mm | 1273mm | 600kg | |
| V-MOD-590-32U | 32U | 590mm | 550mm | 1495mm | 600kg | |
| V-MOD-590-37U | 37U | 590mm | 550mm | 1716mm | 600kg | |
| V-MOD-590-42U | 42U | 590mm | 550mm | 1940mm | 600kg |
