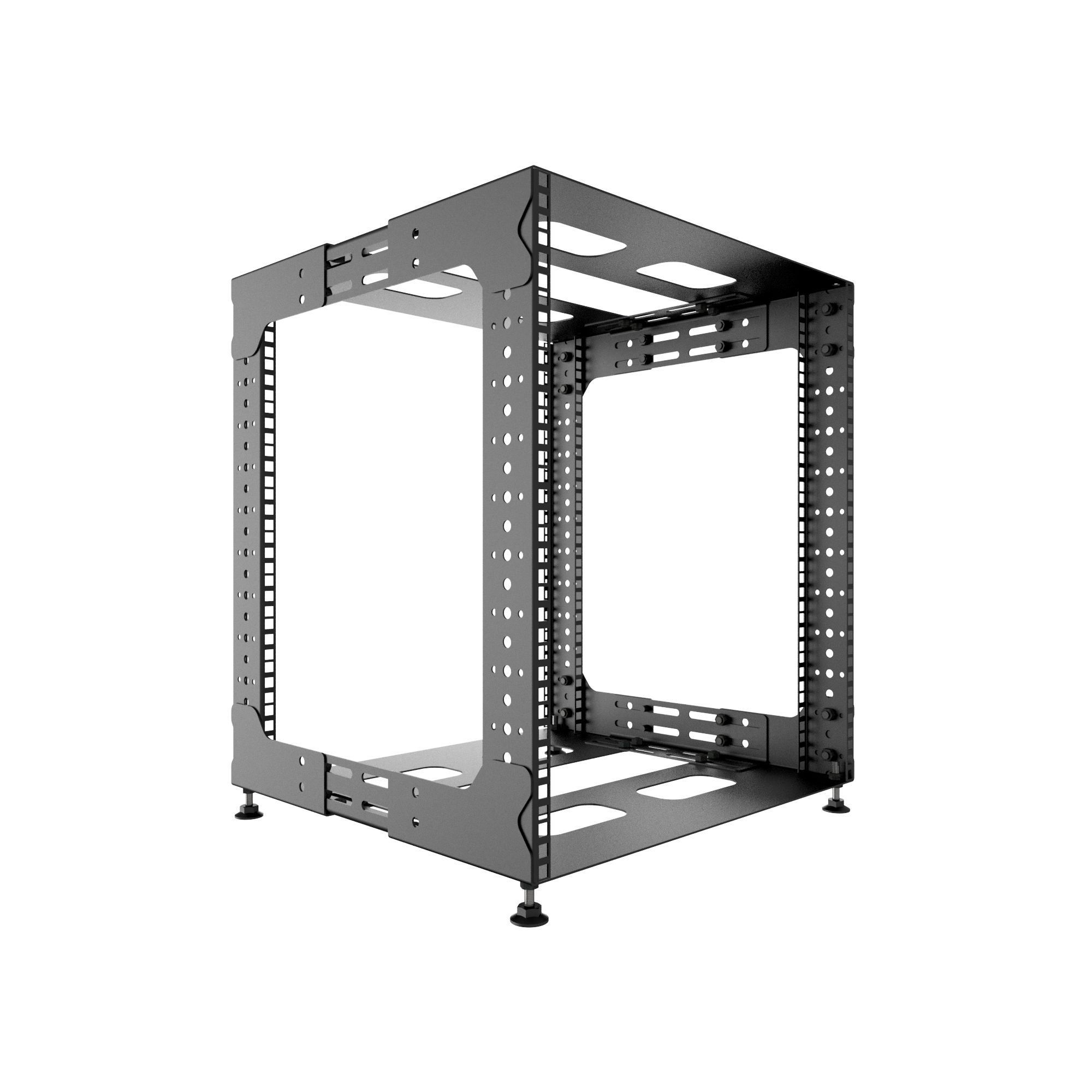

SKL-560
19" Skeleton Rack (360-560mm Depth)
The SKL series is a range of robust open-frame racks designed for 19" equipment. Versatile for both wall-mounted and floor-standing installations. Adjustable in depth from 360 to 560 mm with static load capacity of 100 kg and hanging load capacity of 50 kg.
Technical Specifications
- Rack Units
- Available in 4-18 RU
- Width
- 490mm
- Depth
- 360-560mm
- Load Capacity
- 100kg
Key Features
- Stores up to 18 units of 19" equipment
- Static load capacity of 100 kg
- Hanging load capacity of 50 kg
- Adjustable depth from 360 to 560 mm
- Can be installed at 360°, even upside down
- Robust 2 mm steel sheet base
- Punched square holes for snap-in cage nuts
- Unrestricted airflow due to open frame design
- Easy assembly in 10 minutes
- Stand alone & in-furniture integration
Available Configurations
| Model | Rack Units | Depth | Width | Height | Load Capacity | Action |
|---|---|---|---|---|---|---|
| V-SKL-560-4 | 4 RU | 360-560mm | 490mm | 216mm | 100 kg (static) | |
| V-SKL-560-8 | 8 RU | 360-560mm | 490mm | 394mm | 100 kg (static) | |
| V-SKL-560-12 | 12 RU | 360-560mm | 490mm | 572mm | 100 kg (static) | |
| V-SKL-560-15 | 15 RU | 360-560mm | 490mm | 706mm | 100 kg (static) | |
| V-SKL-560-18 | 18 RU | 360-560mm | 490mm | 840mm | 100 kg (static) |
