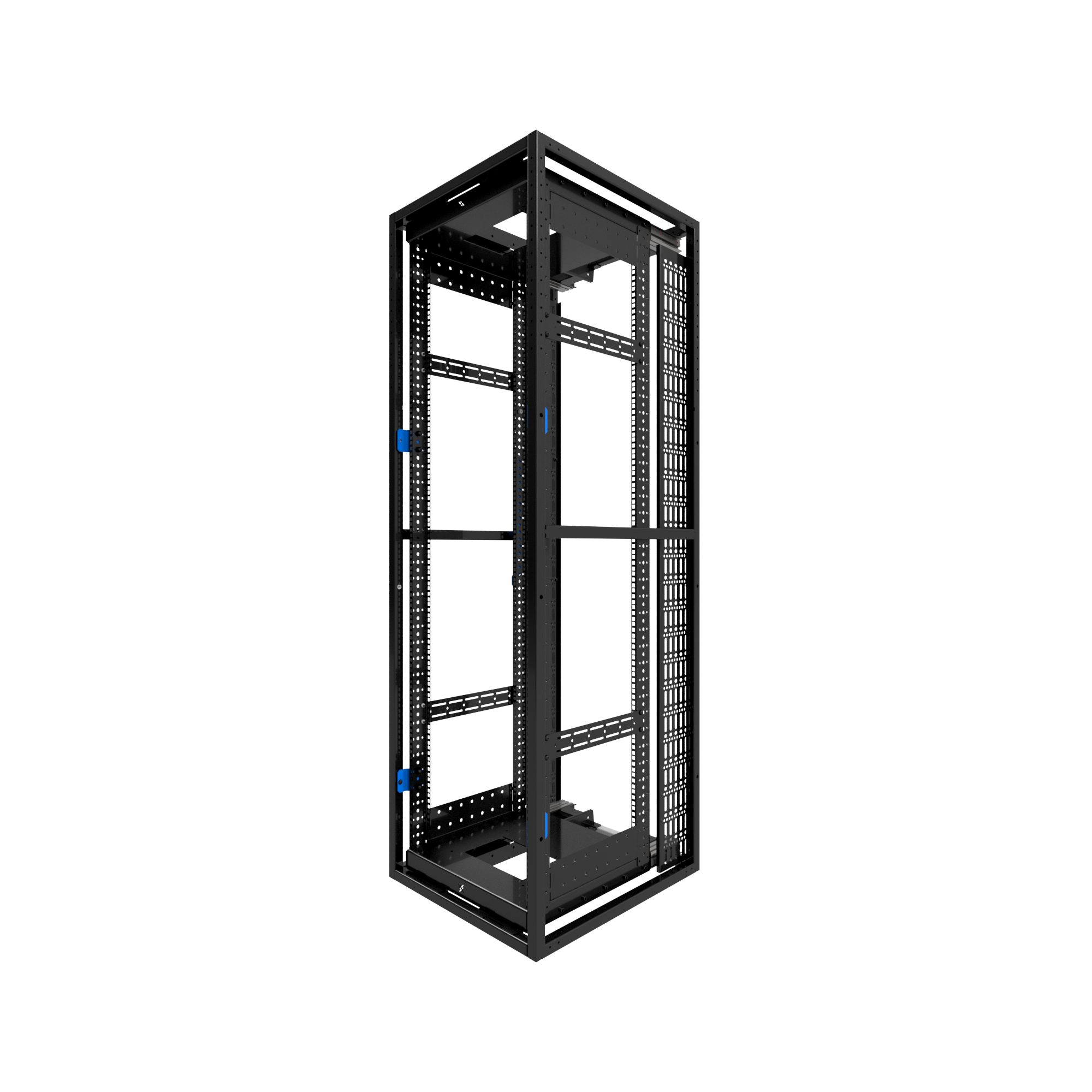

MOD-PLS-650
19" Triple Extraction with Tubular Steel Frame
The V-MOD-650-PLS is our triple extraction pull-out rack with a robust tubular steel frame. Features 4 sliders with 320 kg capacity, or 6 sliders for up to 450 kg. Back plates for cable organization and safety lock bar included.
Technical Specifications
- Rack Units
- Available in 24-42 RU
- Width
- 590mm
- Depth
- 645mm
- Load Capacity
- 320kg
Key Features
- 19" floating triple extraction slide-out rack on 4 sliders
- Capacity up to 42 RU and 320 kg (450 kg with 6 sliders available on request)
- Robust 2 and 3 mm steel structure
- Tubular steel frame 2 mm thick
- Safety lock bar to fix the rack while slid-out
- Cable management lateral plates included
- Back plates for cable organization included
- Rack delivered assembled on pallet
- Rack rails available with threaded holes on request
Available Configurations
| Model | Rack Units | Depth | Width | Height | Load Capacity | Action |
|---|---|---|---|---|---|---|
| V-MOD-PLS-650-24 | 24 RU | 645mm | 590mm | 1252mm | 320 kg | |
| V-MOD-PLS-650-37 | 37 RU | 645mm | 590mm | 1830mm | 320 kg | |
| V-MOD-PLS-650-42 | 42 RU (4 sliders) | 645mm | 590mm | 2054mm | 320 kg |
