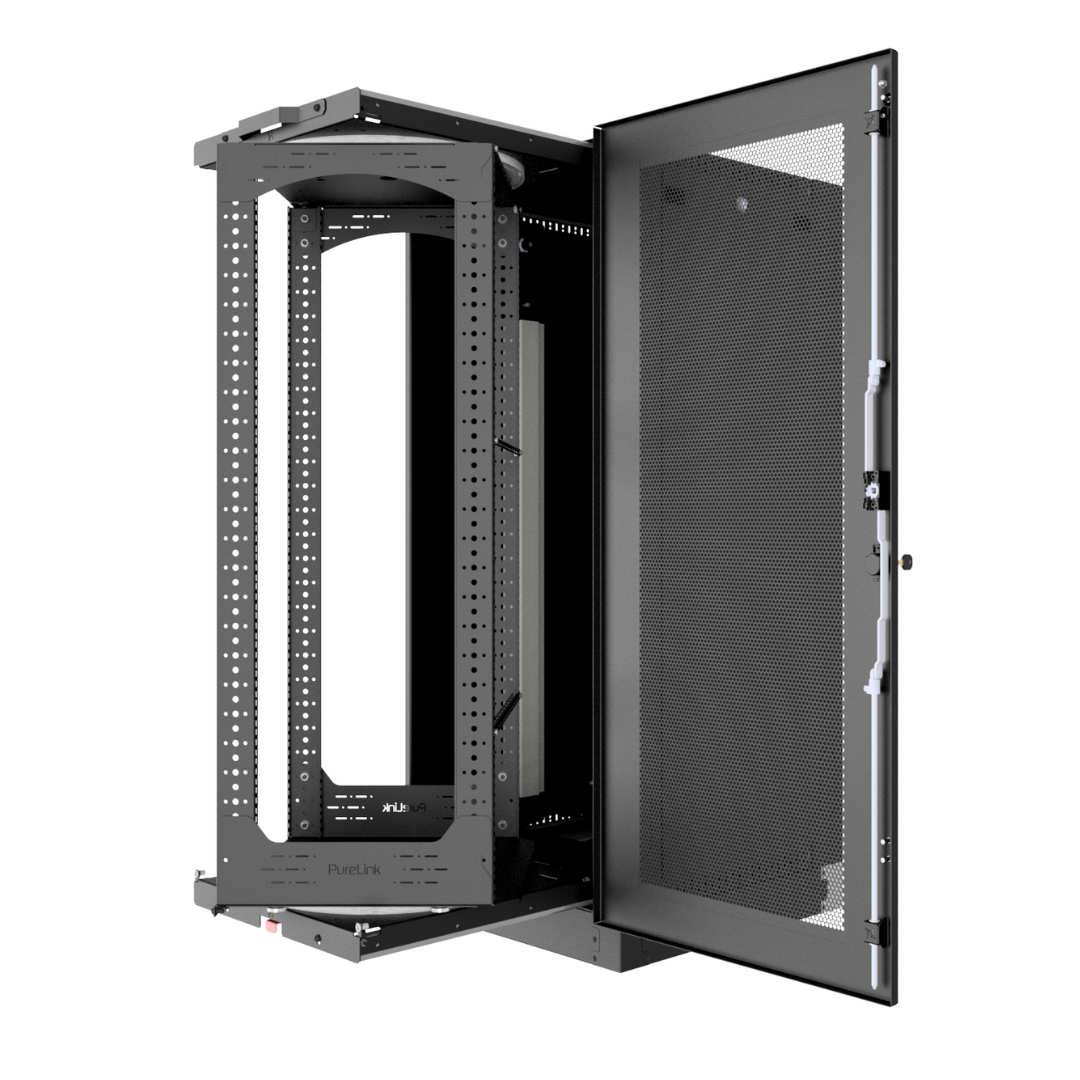

SPR X Series
19" Rack Cabinet with Pull-Out and Rotating System
The SPR X rack series combines protection and convenience with a double slide-out and rotating mechanism integrated into a closed rack with door. Removable lateral and back panels with locker latches allow easy access. Slide-out system supports up to 200 kg and rotating base turns 90° in both directions.
Technical Specifications
- Rack Units
- Available in 24-42 RU
- Width
- 600mm
- Depth
- 630mm / 830mm
- Load Capacity
- 200kg
Key Features
- 19" rack cabinet with removable lateral and back panels
- Double pull-out and rotating system up to 200 kg
- Plexiglass or steel grid door with keylock
- Reversible door for right or left opening
- Safety rotation and slide-out lock system
- Laser-cut knockouts for cable routing
- Rack delivered assembled on pallet
- Wall-mounting brackets available
- Rack base/plinth or roller system optional
Available Configurations
| Model | Rack Units | Depth | Width | Height | Load Capacity | Action |
|---|---|---|---|---|---|---|
| V-SPR-X-630-24 | 24 RU | 630mm | 600mm | 1228mm | 200 kg | |
| V-SPR-X-630-32 | 32 RU | 630mm | 600mm | 1584mm | 200 kg | |
| V-SPR-X-630-40 | 40 RU | 630mm | 600mm | 1940mm | 200 kg | |
| V-SPR-X-630-42 | 42 RU | 630mm | 600mm | 2030mm | 200 kg | |
| V-SPR-X-800-24 | 24 RU | 830mm | 600mm | 1228mm | 200 kg | |
| V-SPR-X-800-32 | 32 RU | 830mm | 600mm | 1584mm | 200 kg | |
| V-SPR-X-800-40 | 40 RU | 830mm | 600mm | 1940mm | 200 kg | |
| V-SPR-X-800-42 | 42 RU | 830mm | 600mm | 2030mm | 200 kg |
