3D Interactive
Drag to rotate | Scroll to zoom

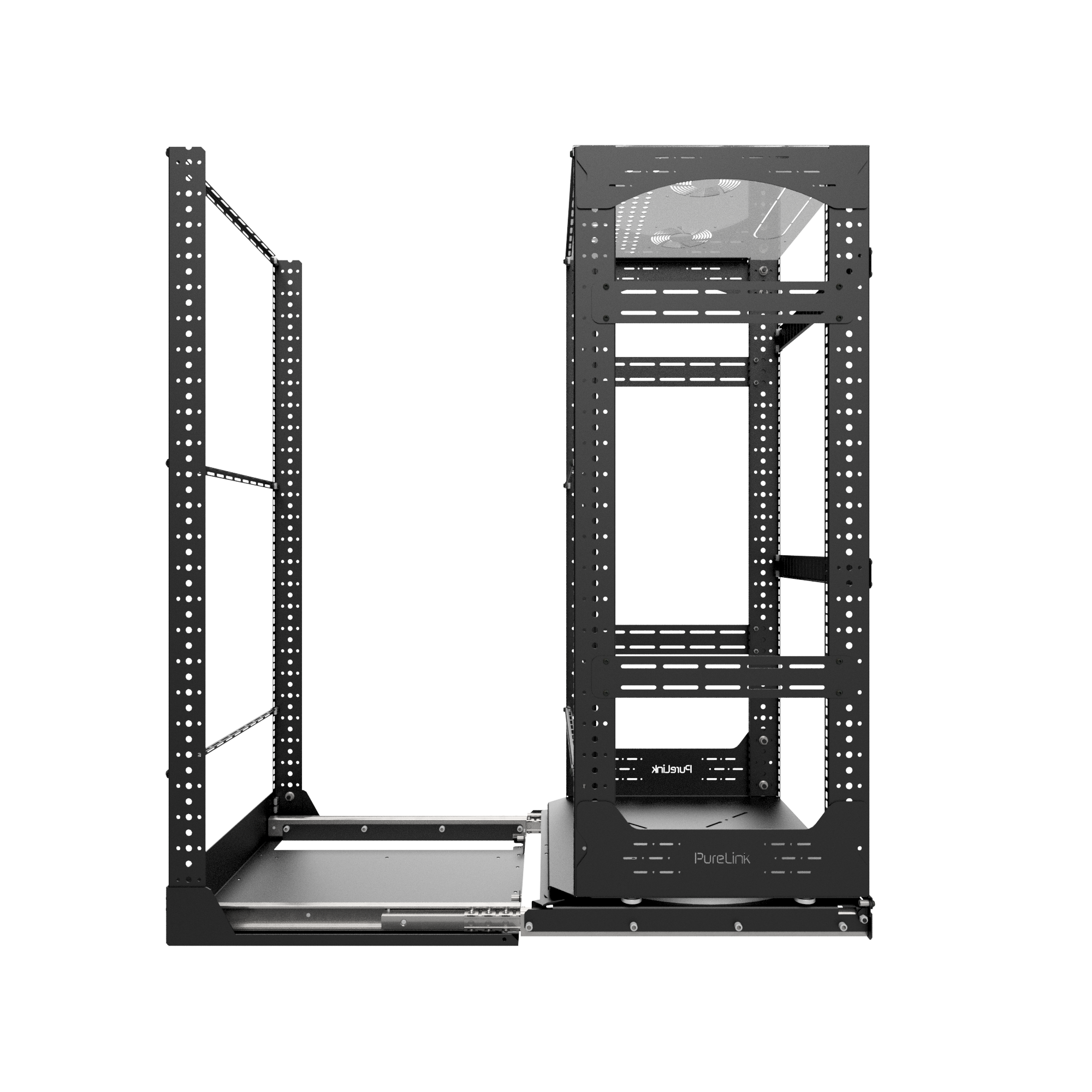

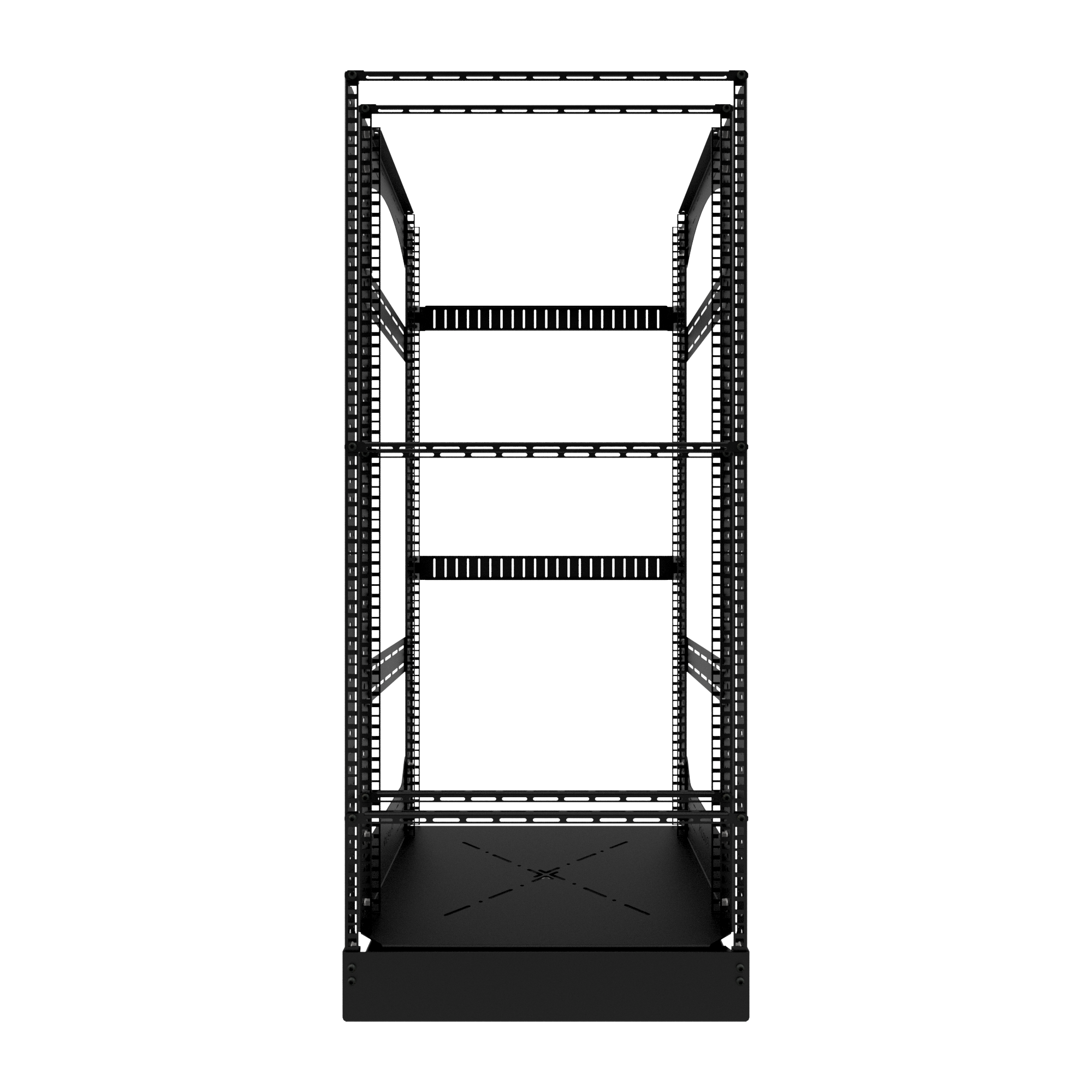

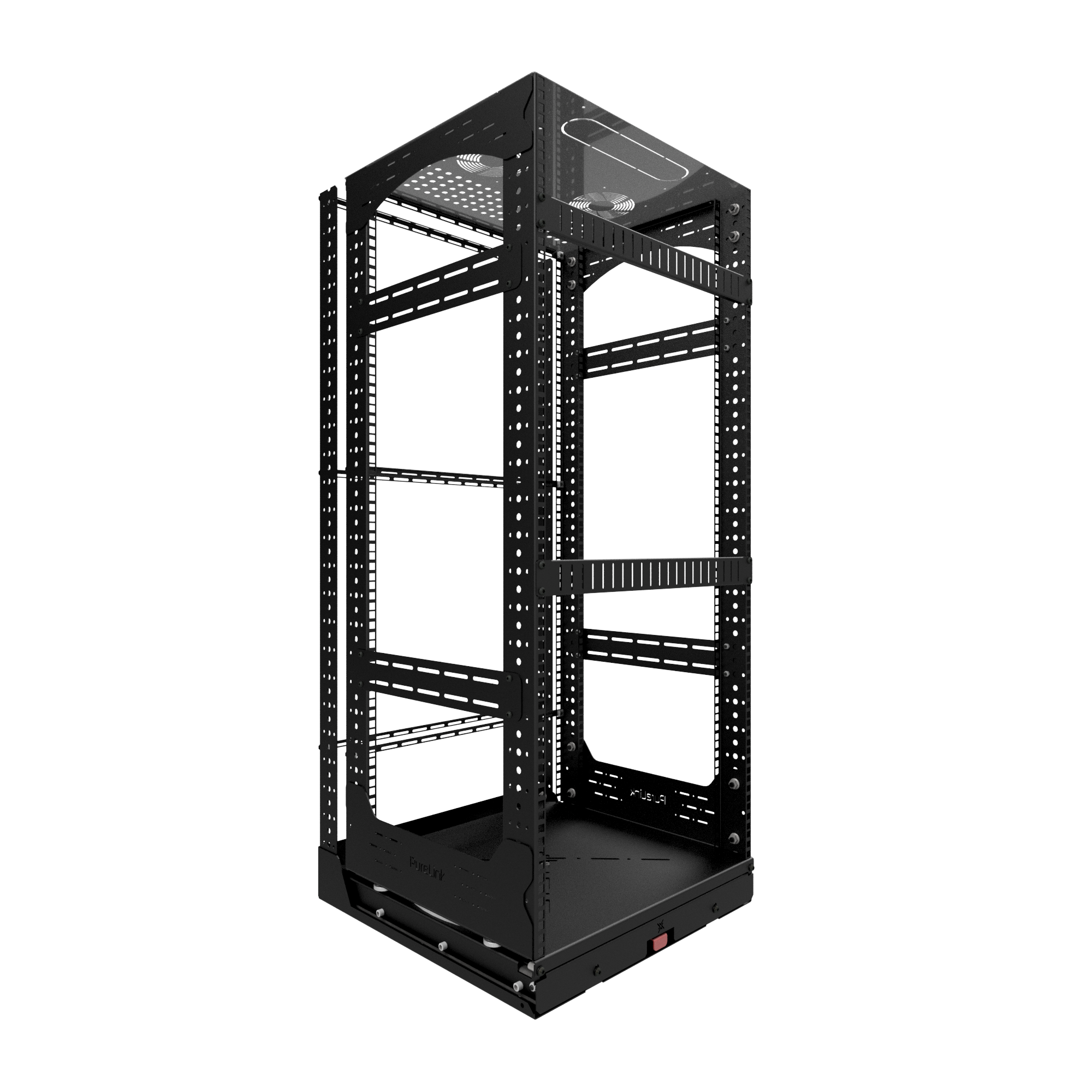

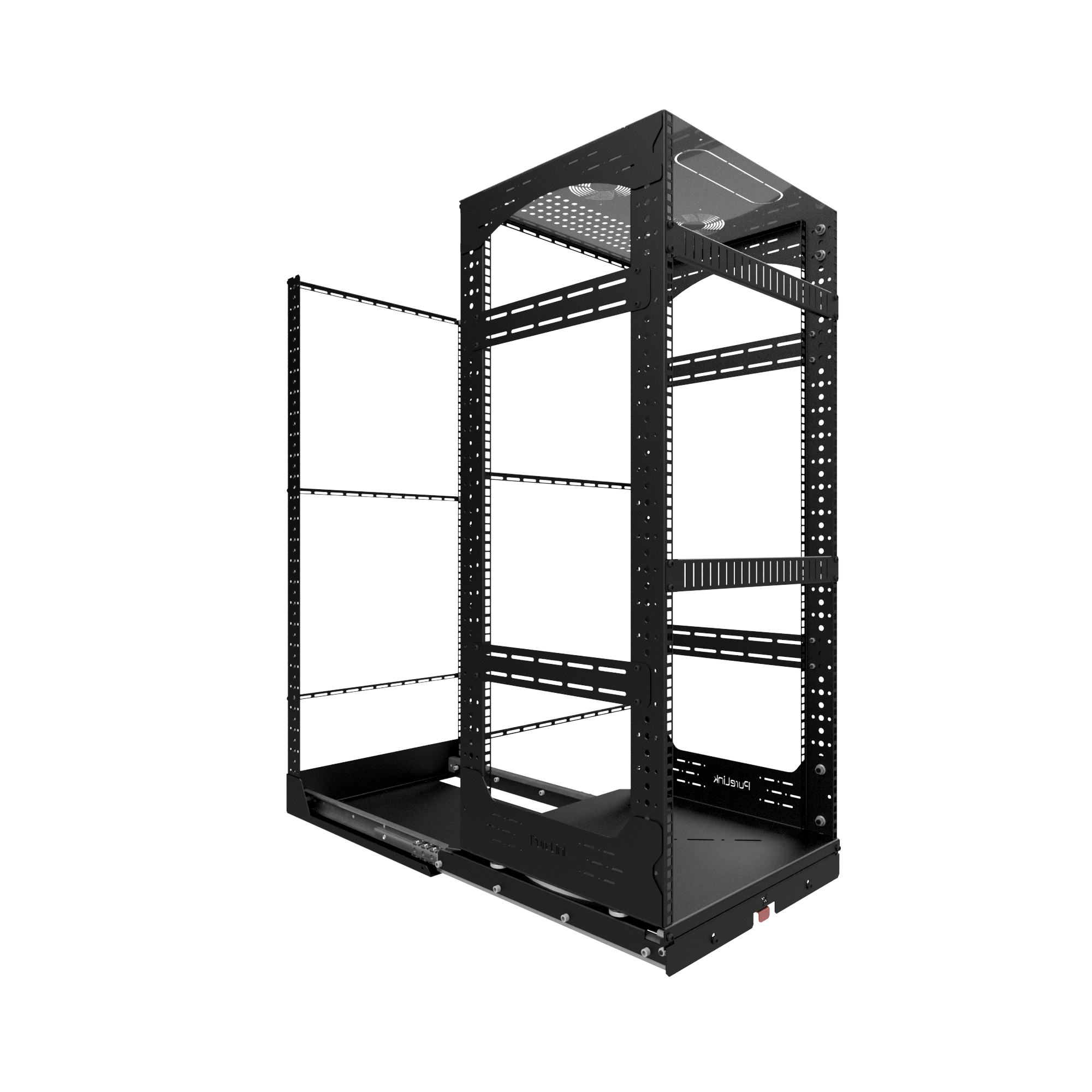

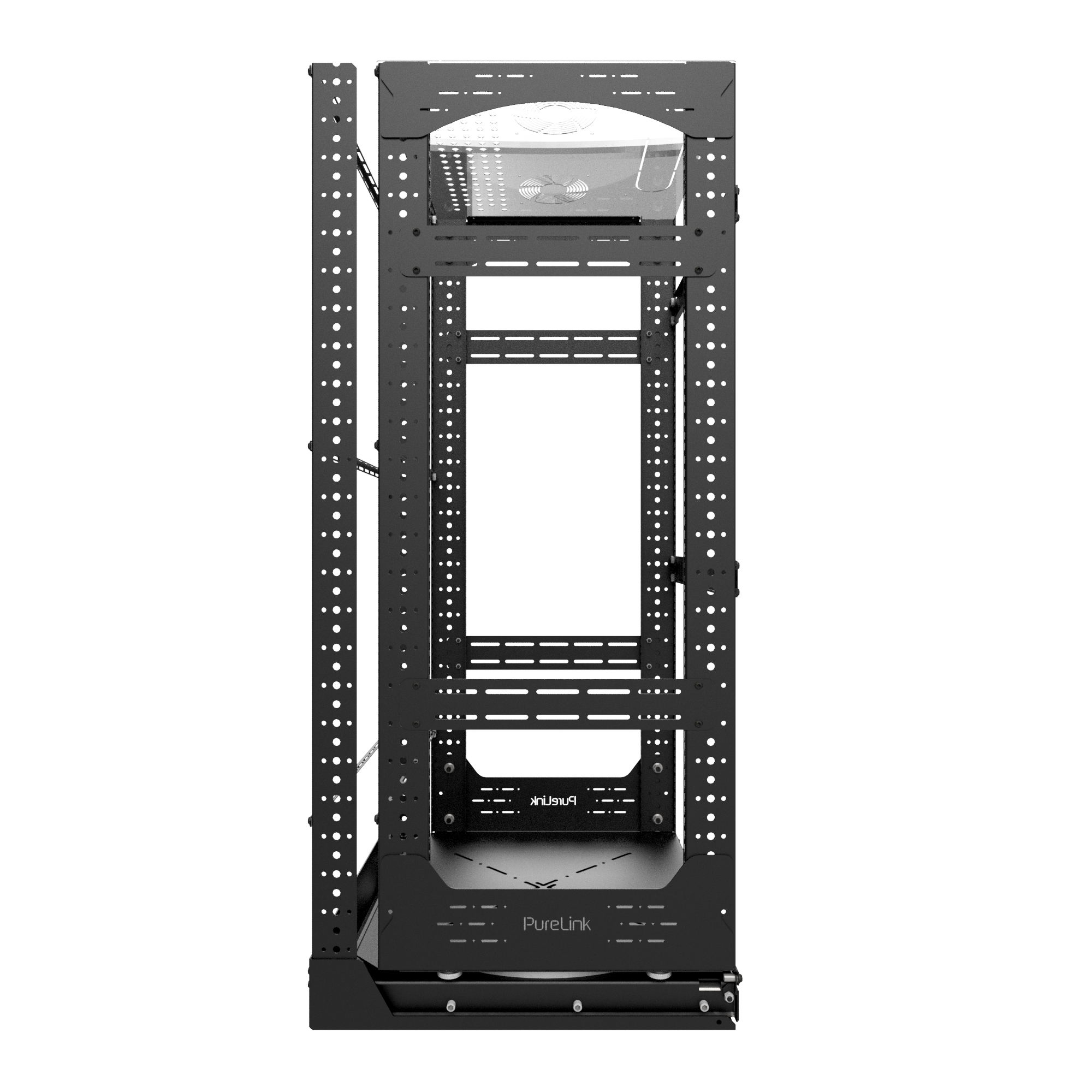

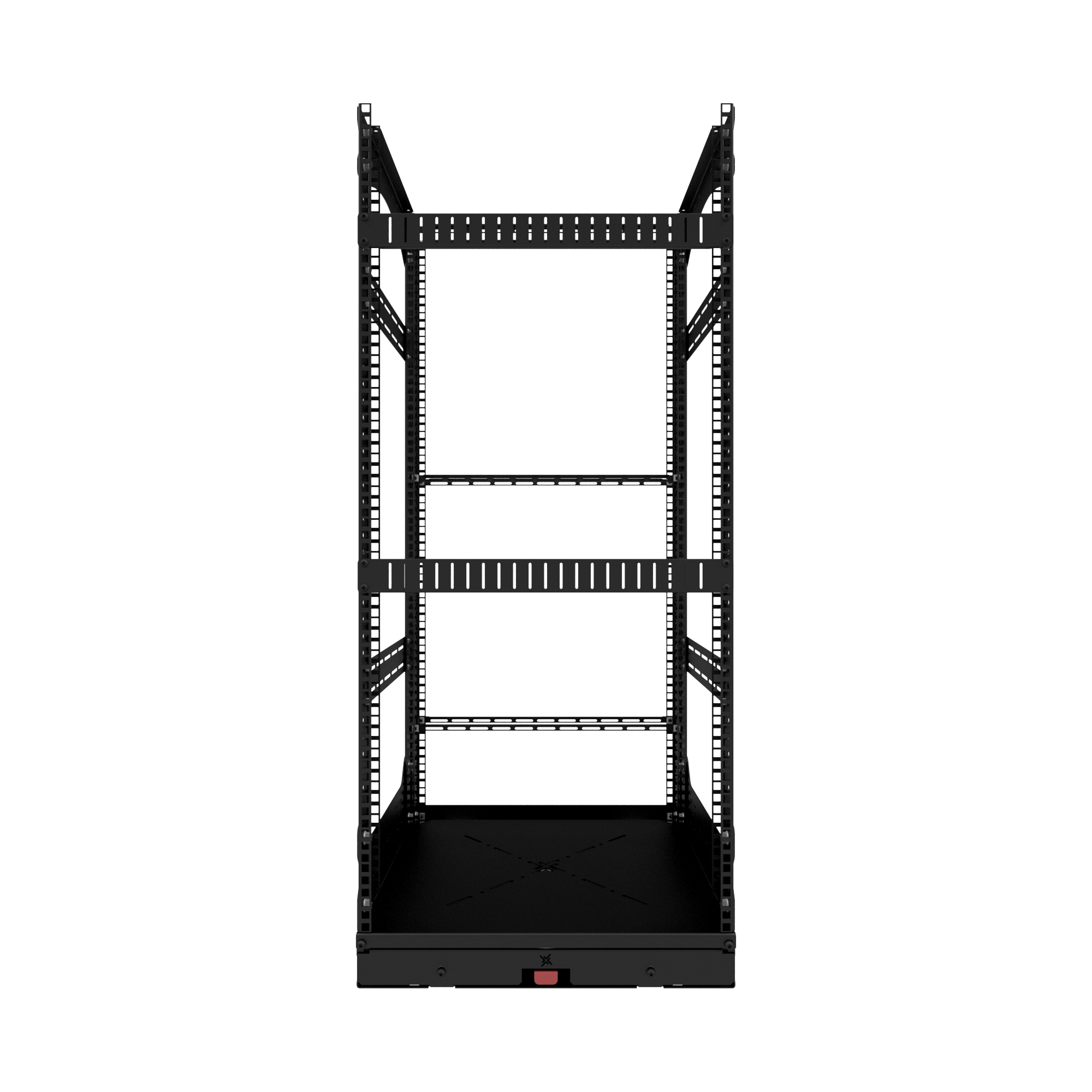

MPR MAX-510
19" Heavy-Duty Pull-Out and Rotating Rack
MPR LC200 version is our floating pull-out and rotating 19" rack with store capacity up to 42 rack units and 190 kg. With two heavy duty telescopic steel slides, this rack is suitable for demanding use. Features two security lock systems preventing accidental slide back or rotation during use.
Technical Specifications
- Rack Units
- Available in 12-42 RU
- Width
- 490mm
- Depth
- 515mm
- Load Capacity
- 190kg
Key Features
- 19" floating pull-out and rotating rack
- Heavy-duty telescopic steel slides
- Capacity up to 42 rack units
- Robust 2 mm steel sheet base
- Load capacity up to 190 kg
- Rotation lock system
- Pre-assembled sliding base
- Flat pack delivery
- Plates for cable organization included
- Rack rails available with threaded holes
Available Configurations
| Model | Rack Units | Depth | Width | Height | Load Capacity | Action |
|---|---|---|---|---|---|---|
| V-MPR-MAX-510-12 | 12 RU | 515mm | 490mm | 610mm | 190 kg | |
| V-MPR-MAX-510-14 | 14 RU | 515mm | 490mm | 698mm | 190 kg | |
| V-MPR-MAX-510-16 | 16 RU | 515mm | 490mm | 788mm | 190 kg | |
| V-MPR-MAX-510-18 | 18 RU | 515mm | 490mm | 876mm | 190 kg | |
| V-MPR-MAX-510-20 | 20 RU | 515mm | 490mm | 965mm | 190 kg | |
| V-MPR-MAX-510-24 | 24 RU | 515mm | 490mm | 1144mm | 190 kg | |
| V-MPR-MAX-510-28 | 28 RU | 515mm | 490mm | 1322mm | 190 kg | |
| V-MPR-MAX-510-32 | 32 RU | 515mm | 490mm | 1500mm | 190 kg | |
| V-MPR-MAX-510-36 | 36 RU | 515mm | 490mm | 1678mm | 190 kg | |
| V-MPR-MAX-510-40 | 40 RU | 515mm | 490mm | 1855mm | 190 kg | |
| V-MPR-MAX-510-42 | 42 RU | 515mm | 490mm | 1944mm | 190 kg |
