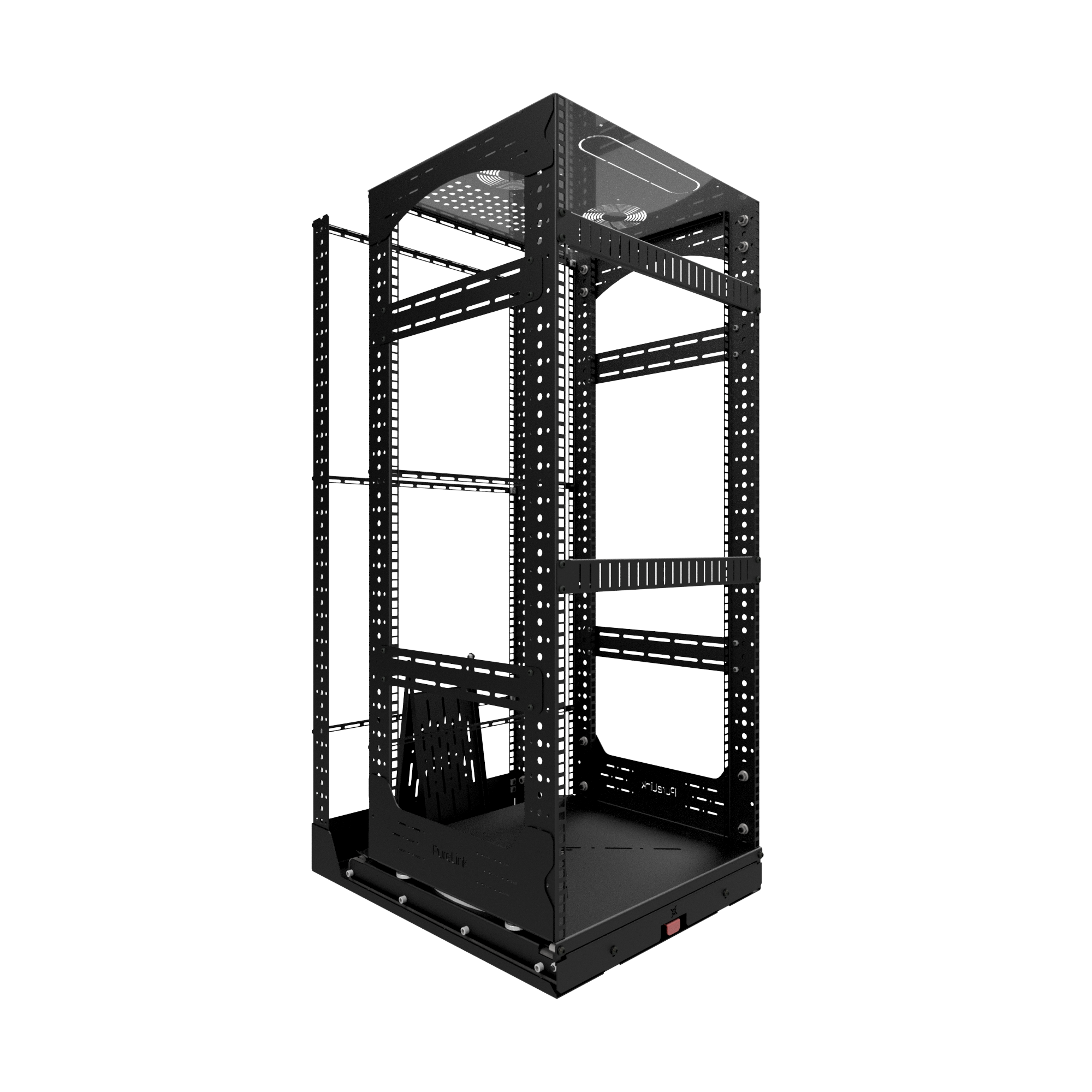

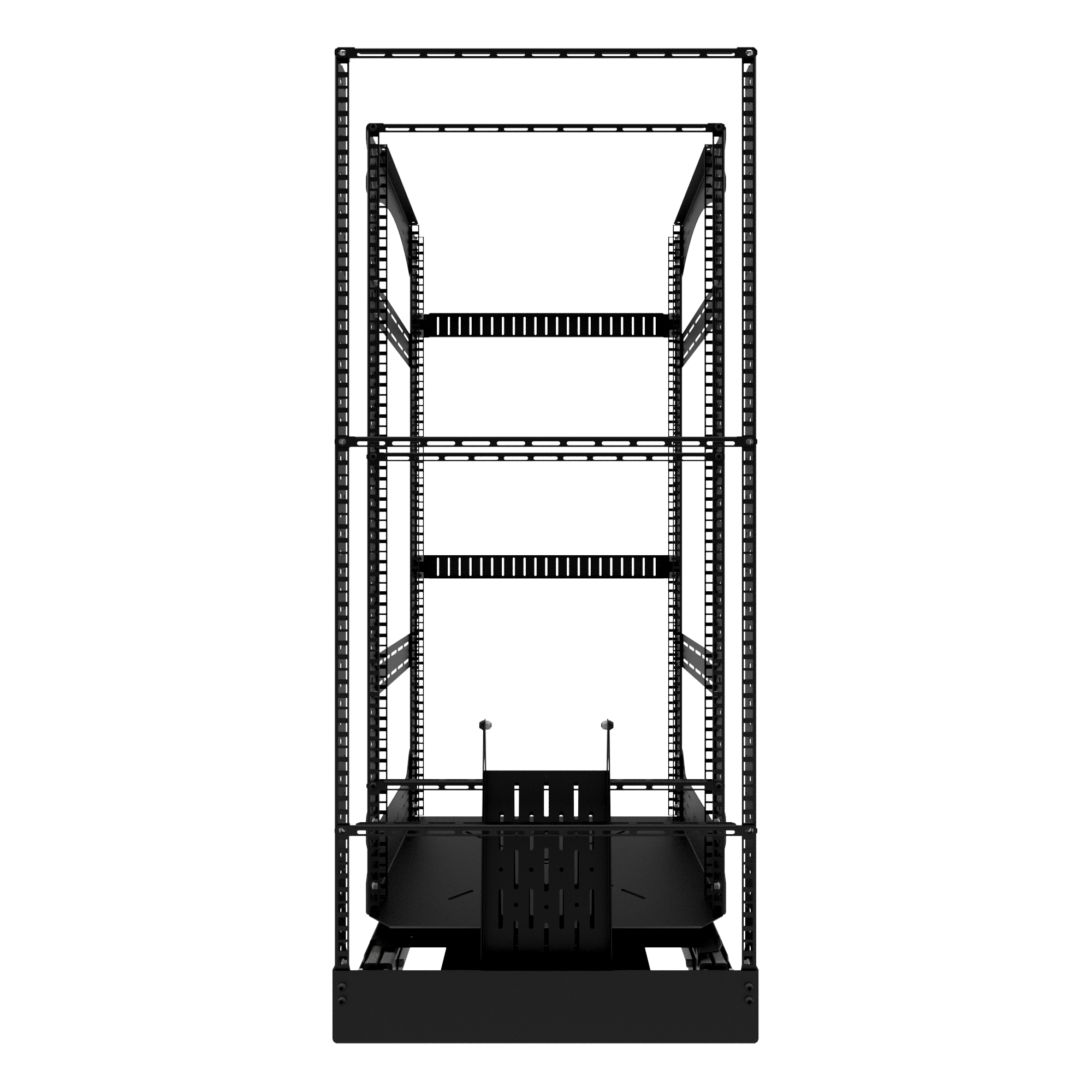

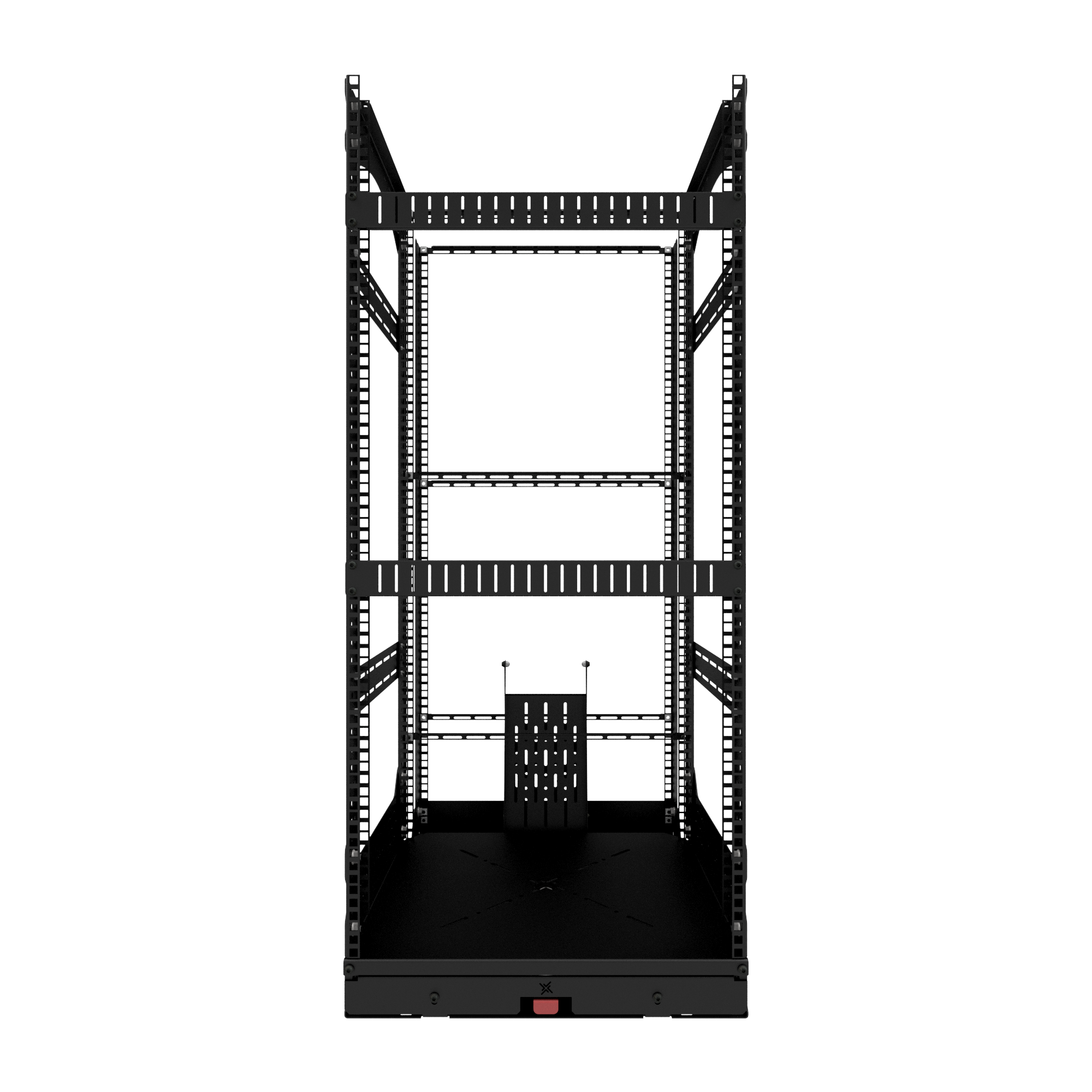

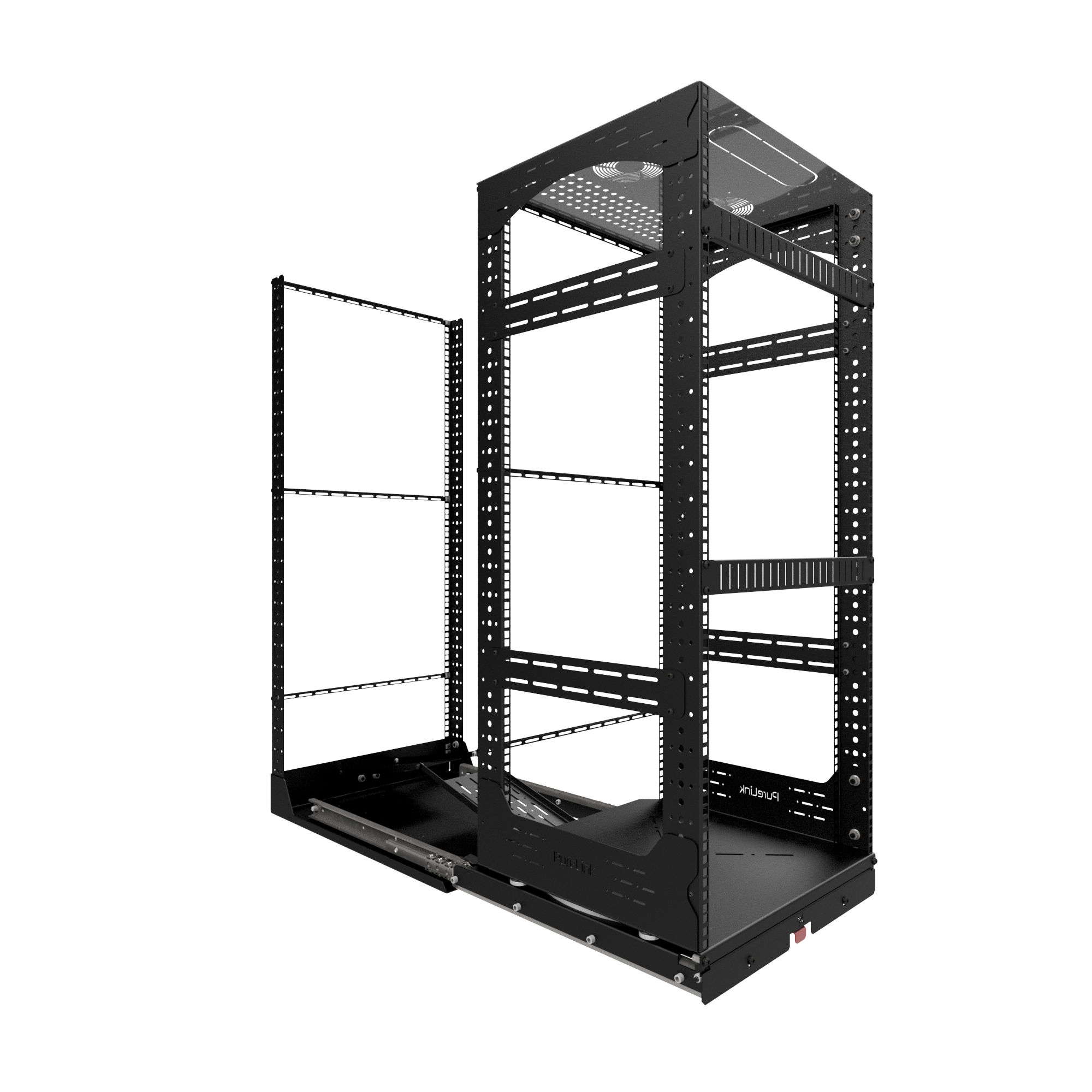

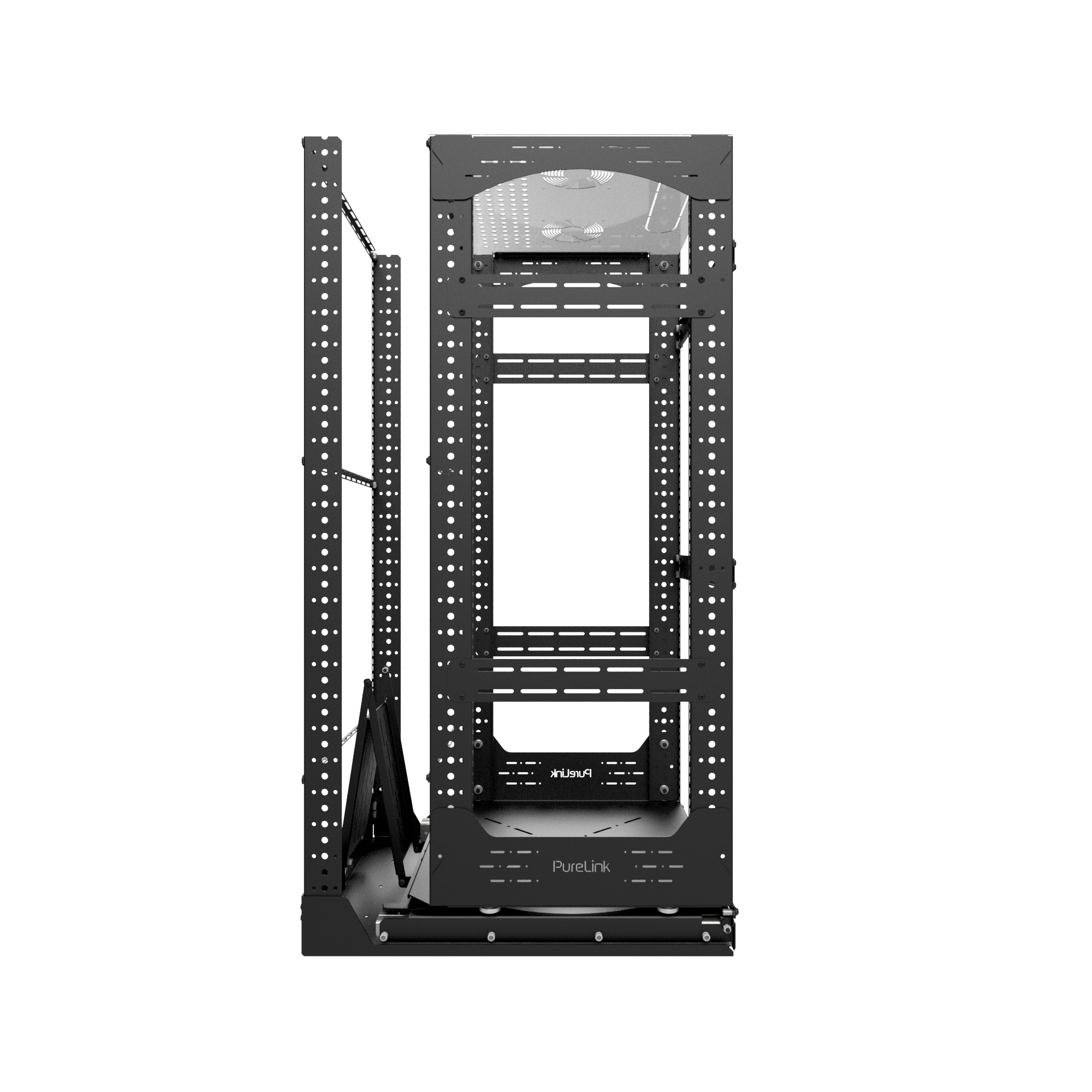

MPR LC200-E610
19" Heavy-Duty Extended Depth Pull-Out Rack
MPR LC200 extended version is our floating pull-out and rotating 19" rack with store capacity up to 42 rack units and 190 kg. Features extra cable management rail in the back that slides with the rack. Suitable for demanding use with heavy-duty telescopic steel slides.
Technical Specifications
- Rack Units
- Available in 12-42 RU
- Depth
- 615mm
- Load Capacity
- 190kg
Key Features
- 19" floating pull-out and rotating rack
- Extended depth with slide-out cable management rail
- Heavy-duty telescopic steel slides
- Capacity up to 42 rack units
- Robust 2 mm steel sheet base
- Load capacity up to 190 kg
- Rotation lock system
- Pre-assembled sliding base
- Flat pack delivery
- Rack rails available with threaded holes
Available Configurations
| Model | Rack Units | Depth | Width | Height | Load Capacity | Action |
|---|---|---|---|---|---|---|
| V-MPR-LC200-E610-12 | 12 RU | 615mm | 490mm | 610mm | 190 kg | |
| V-MPR-LC200-E610-14 | 14 RU | 615mm | 490mm | 698mm | 190 kg | |
| V-MPR-LC200-E610-16 | 16 RU | 615mm | 490mm | 788mm | 190 kg | |
| V-MPR-LC200-E610-18 | 18 RU | 615mm | 490mm | 876mm | 190 kg | |
| V-MPR-LC200-E610-20 | 20 RU | 615mm | 490mm | 965mm | 190 kg | |
| V-MPR-LC200-E610-24 | 24 RU | 615mm | 490mm | 1144mm | 190 kg | |
| V-MPR-LC200-E610-28 | 28 RU | 615mm | 490mm | 1322mm | 190 kg | |
| V-MPR-LC200-E610-32 | 32 RU | 615mm | 490mm | 1500mm | 190 kg | |
| V-MPR-LC200-E610-36 | 36 RU | 615mm | 490mm | 1678mm | 190 kg | |
| V-MPR-LC200-E610-40 | 40 RU | 615mm | 490mm | 1855mm | 190 kg | |
| V-MPR-LC200-E610-42 | 42 RU | 615mm | 490mm | 1944mm | 190 kg |
