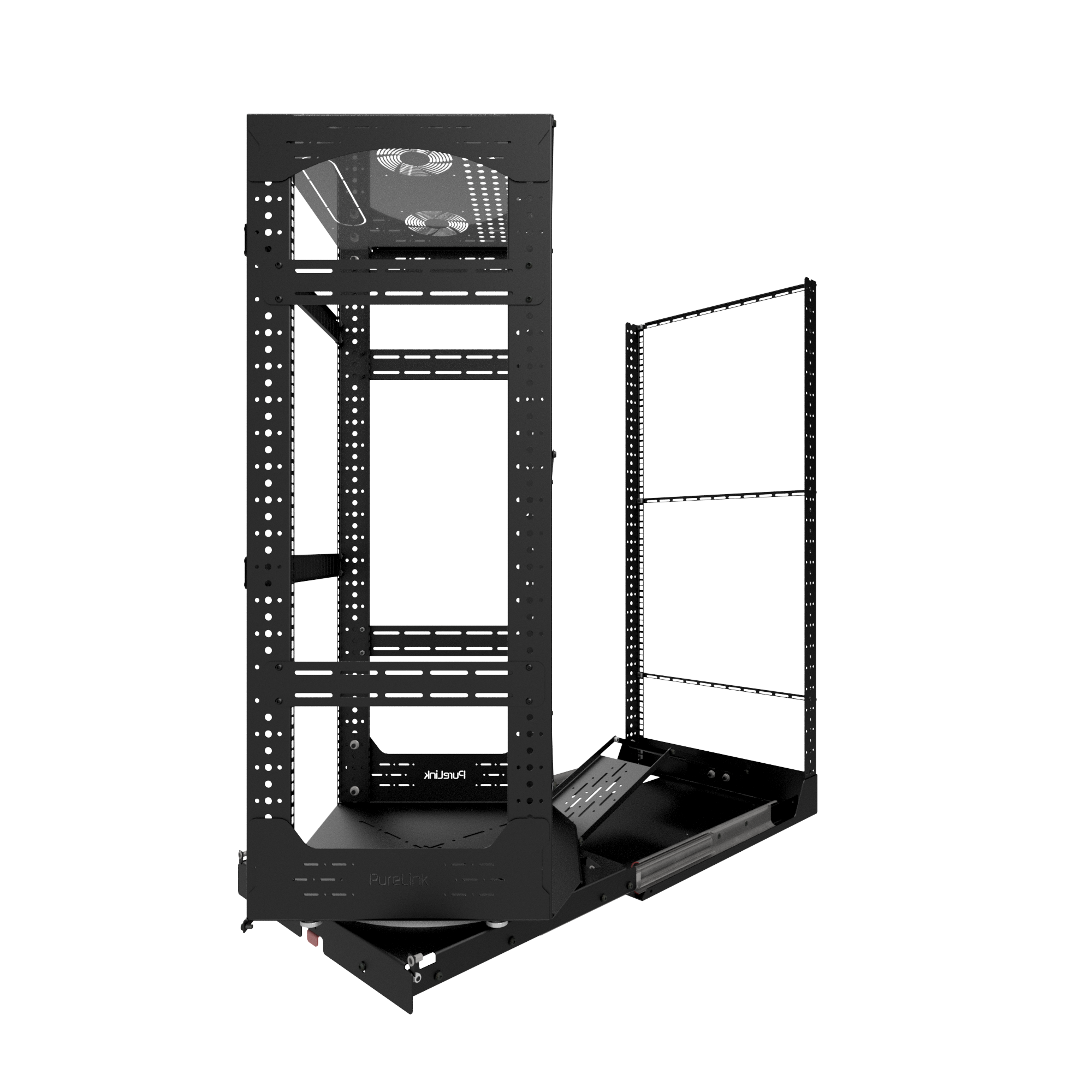

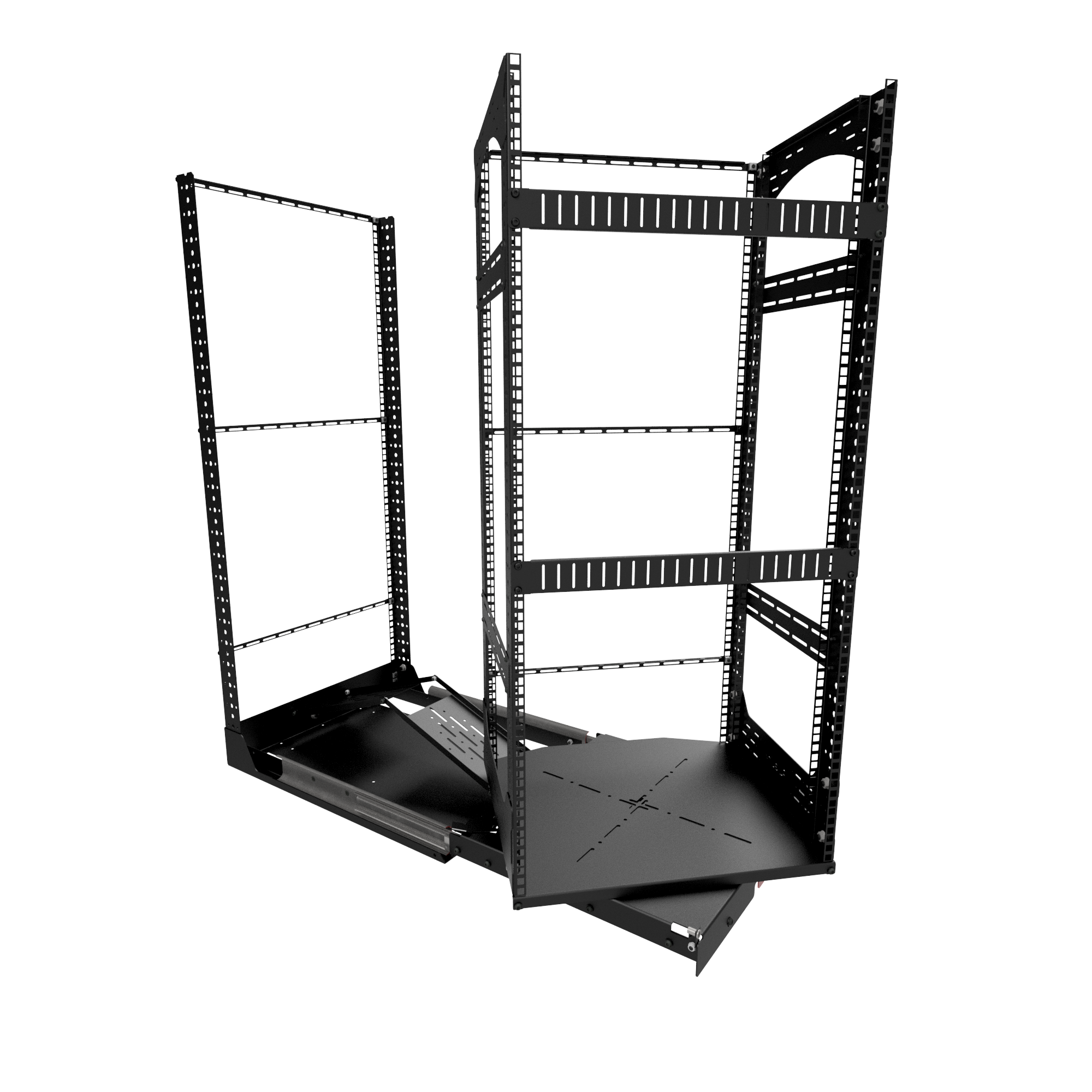

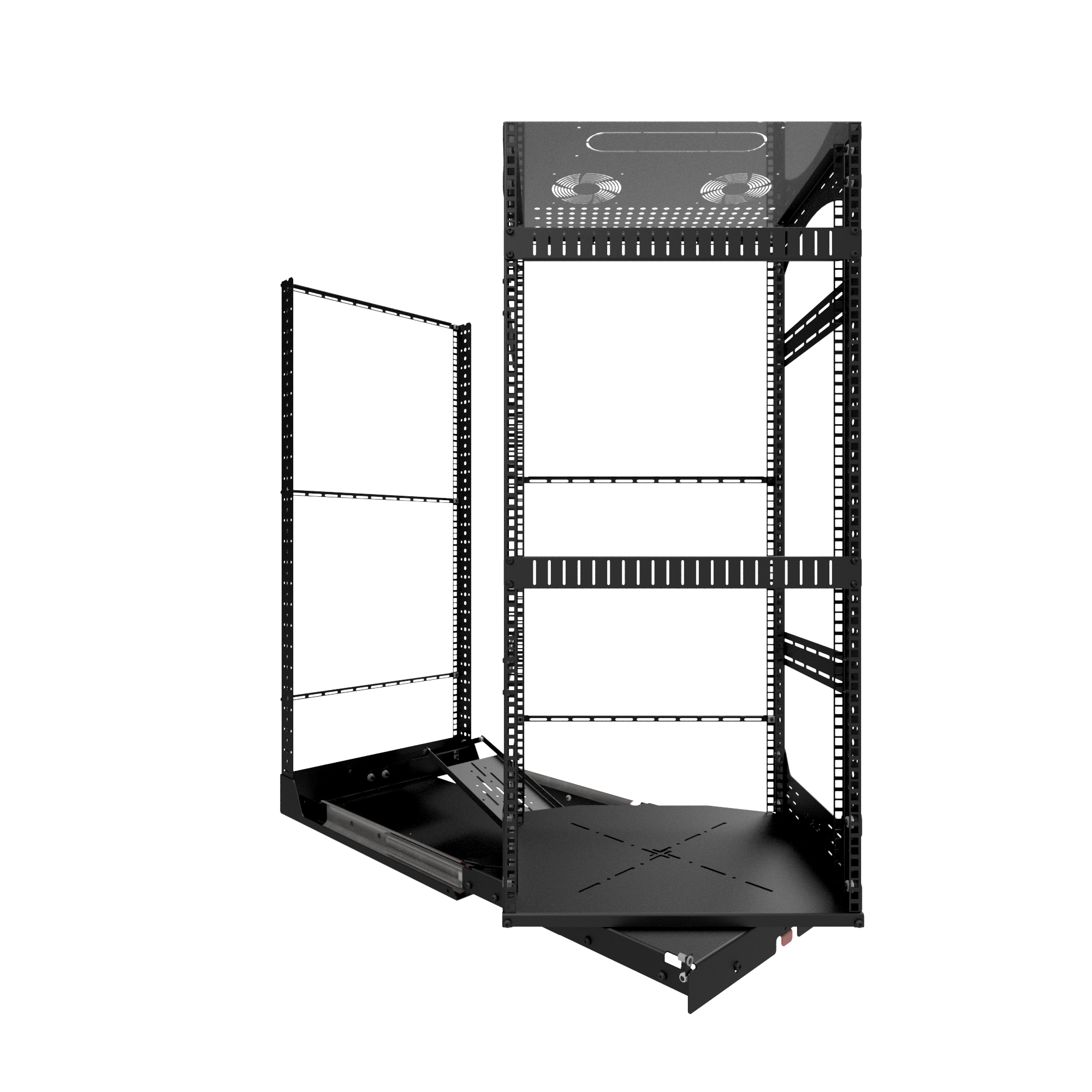

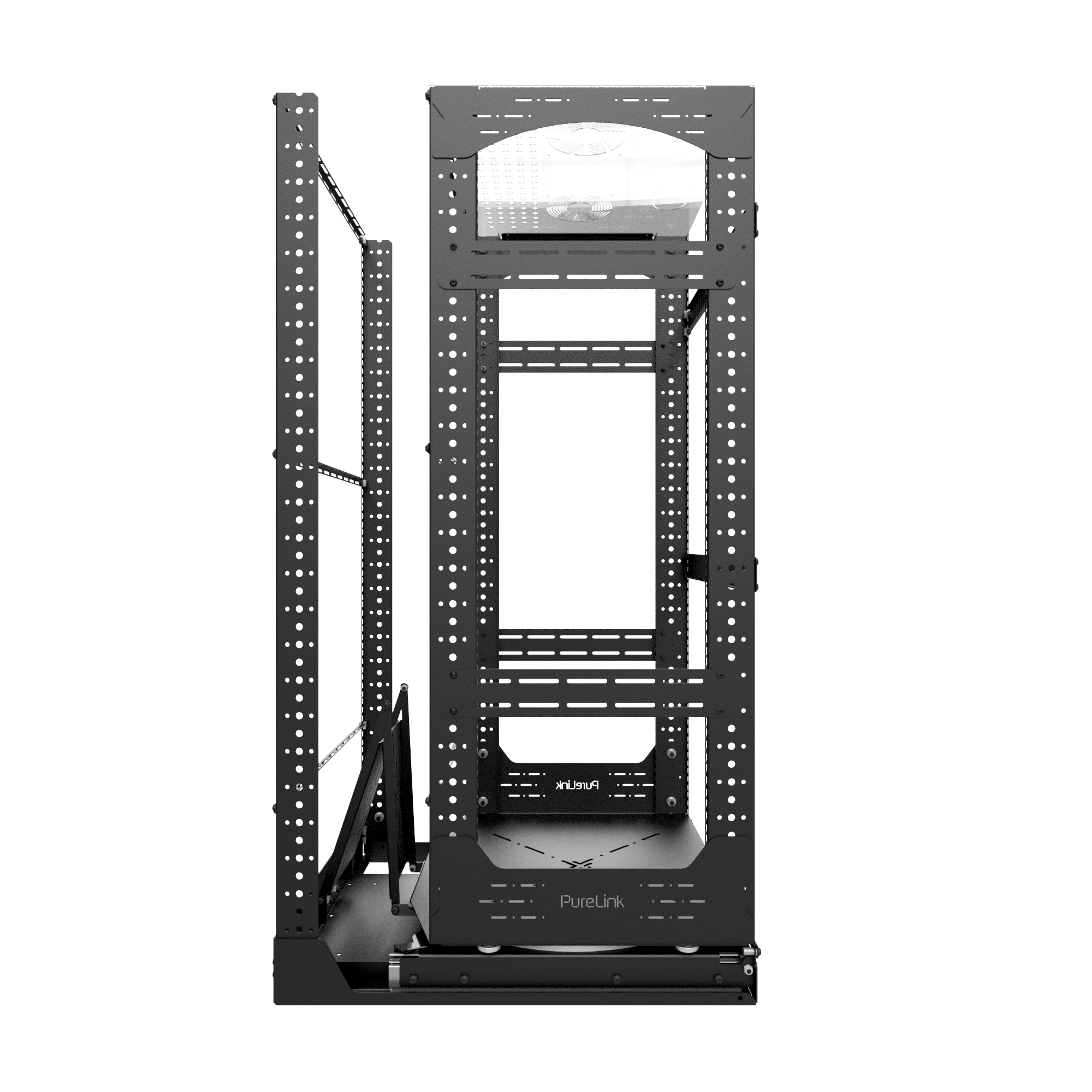

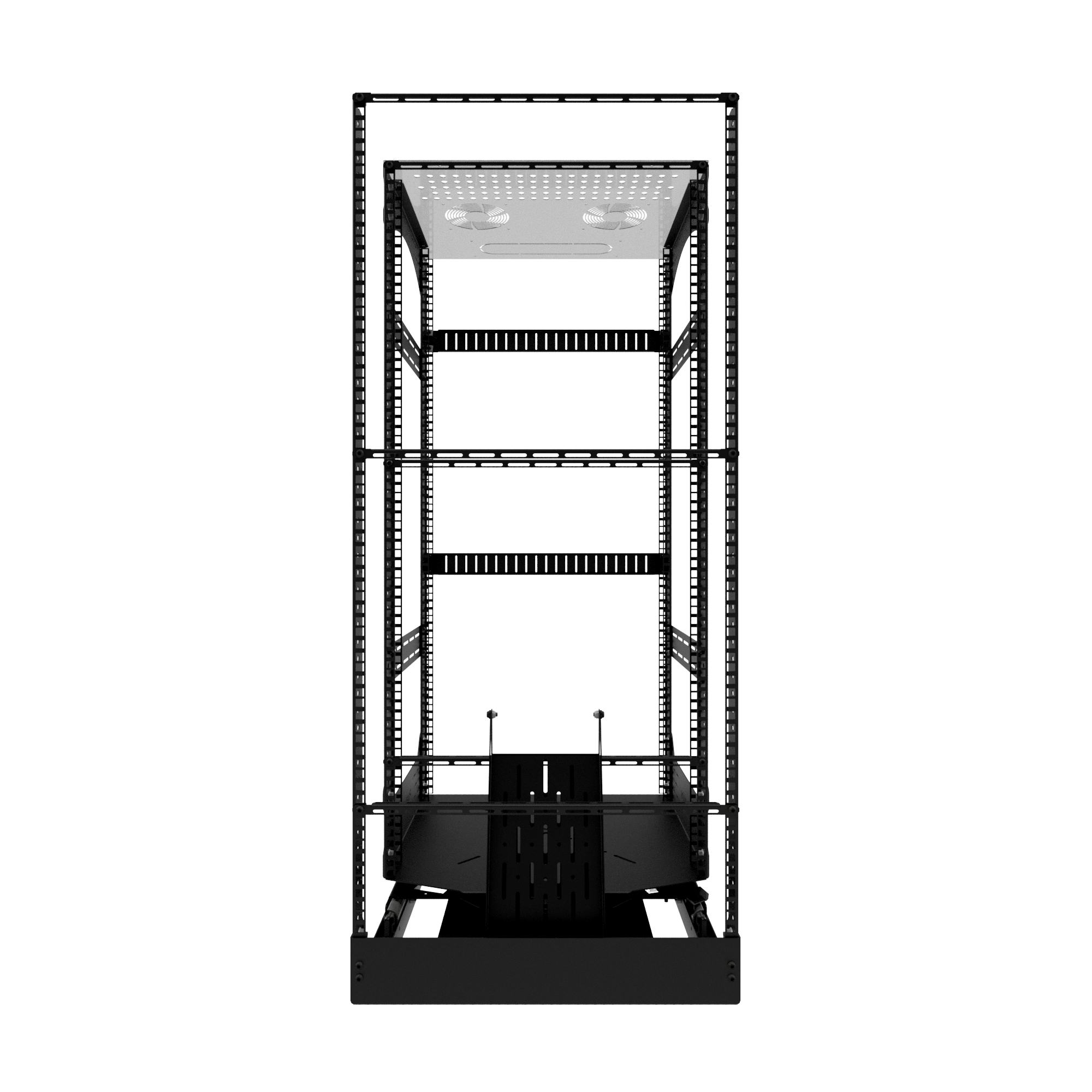

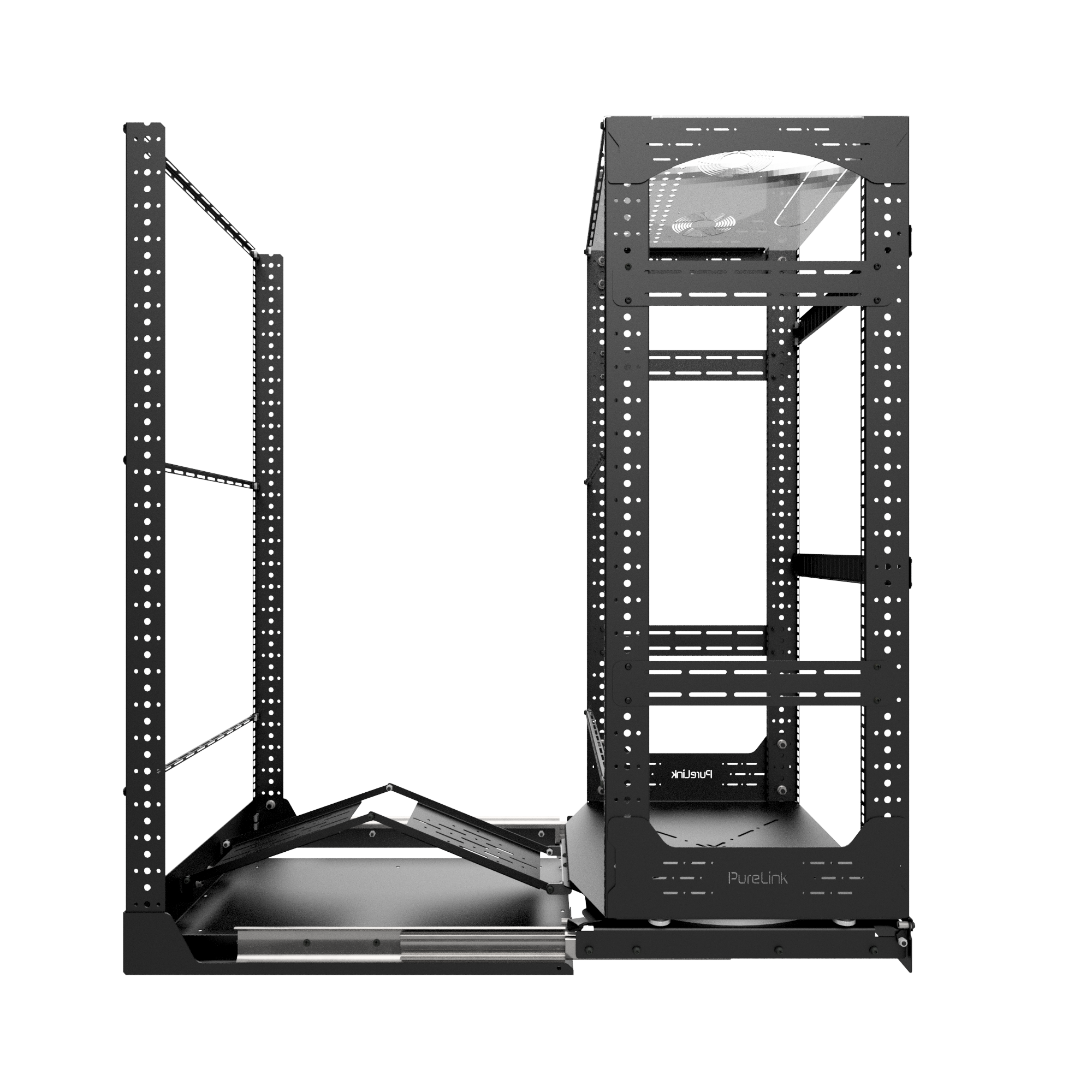

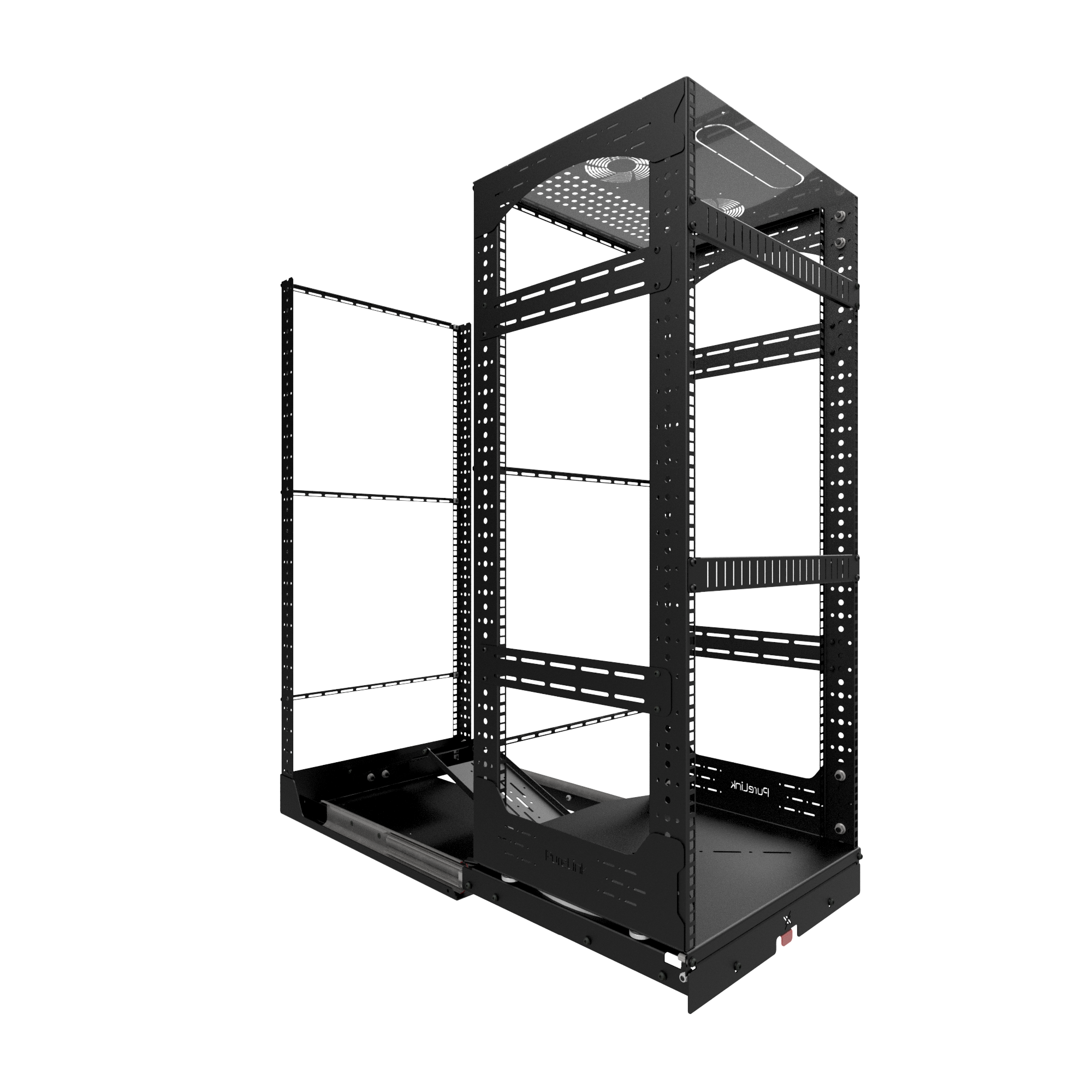

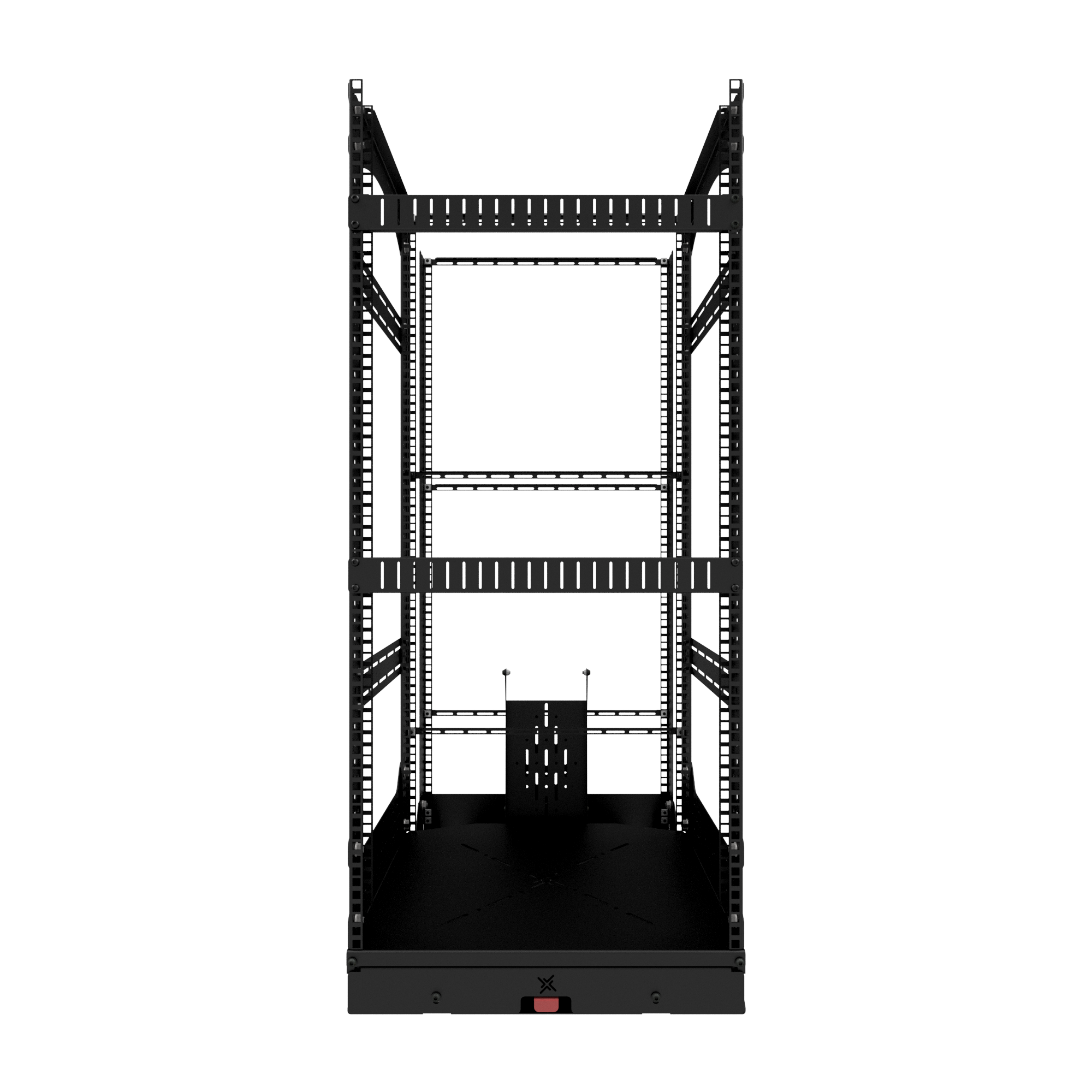

MPR LC130-E610

19" Pull-Out and Rotating Extended Depth Rack

The MPR LC130-E610 is our floating pull-out and rotating 19-inch rack with extended depth. Features increased depth and a foldable cable tray for enhanced cable management. Storage capacity up to 42 rack units with 120 kg load capacity. Two security lock systems prevent accidental movement during use.

Technical Specifications

Rack Units
Available in 6-42 RU
Depth
615mm
Load Capacity
120kg

Key Features

  • 19" floating pull-out and rotating rack
  • Extended depth with foldable cable tray
  • Capacity up to 42 rack units
  • Robust 2 mm steel sheet base
  • Load capacity up to 120 kg
  • Rotation lock system
  • Pre-assembled sliding base
  • Flat pack delivery
  • Plates and foldable cable tray for cable organization included
  • Rack rails available with threaded holes

Available Configurations

ModelRack UnitsDepthWidthHeightLoad CapacityAction
V-MPR-LC130-E610-66 RU615mm490mm348mm120 kg
V-MPR-LC130-E610-88 RU615mm490mm436mm120 kg
V-MPR-LC130-E610-1010 RU615mm490mm525mm120 kg
V-MPR-LC130-E610-1212 RU615mm490mm614mm120 kg
V-MPR-LC130-E610-1414 RU615mm490mm704mm120 kg
V-MPR-LC130-E610-1616 RU615mm490mm792mm120 kg
V-MPR-LC130-E610-1818 RU615mm490mm882mm120 kg
V-MPR-LC130-E610-2020 RU615mm490mm970mm120 kg
V-MPR-LC130-E610-2424 RU615mm490mm1148mm120 kg
V-MPR-LC130-E610-2828 RU615mm490mm1327mm120 kg
V-MPR-LC130-E610-3232 RU615mm490mm1505mm120 kg
V-MPR-LC130-E610-3636 RU615mm490mm1684mm120 kg
V-MPR-LC130-E610-4040 RU615mm490mm1862mm120 kg
V-MPR-LC130-E610-4242 RU615mm490mm1950mm120 kg

Need a Custom Configuration?

Our engineering team can modify any product to meet your specific requirements.
