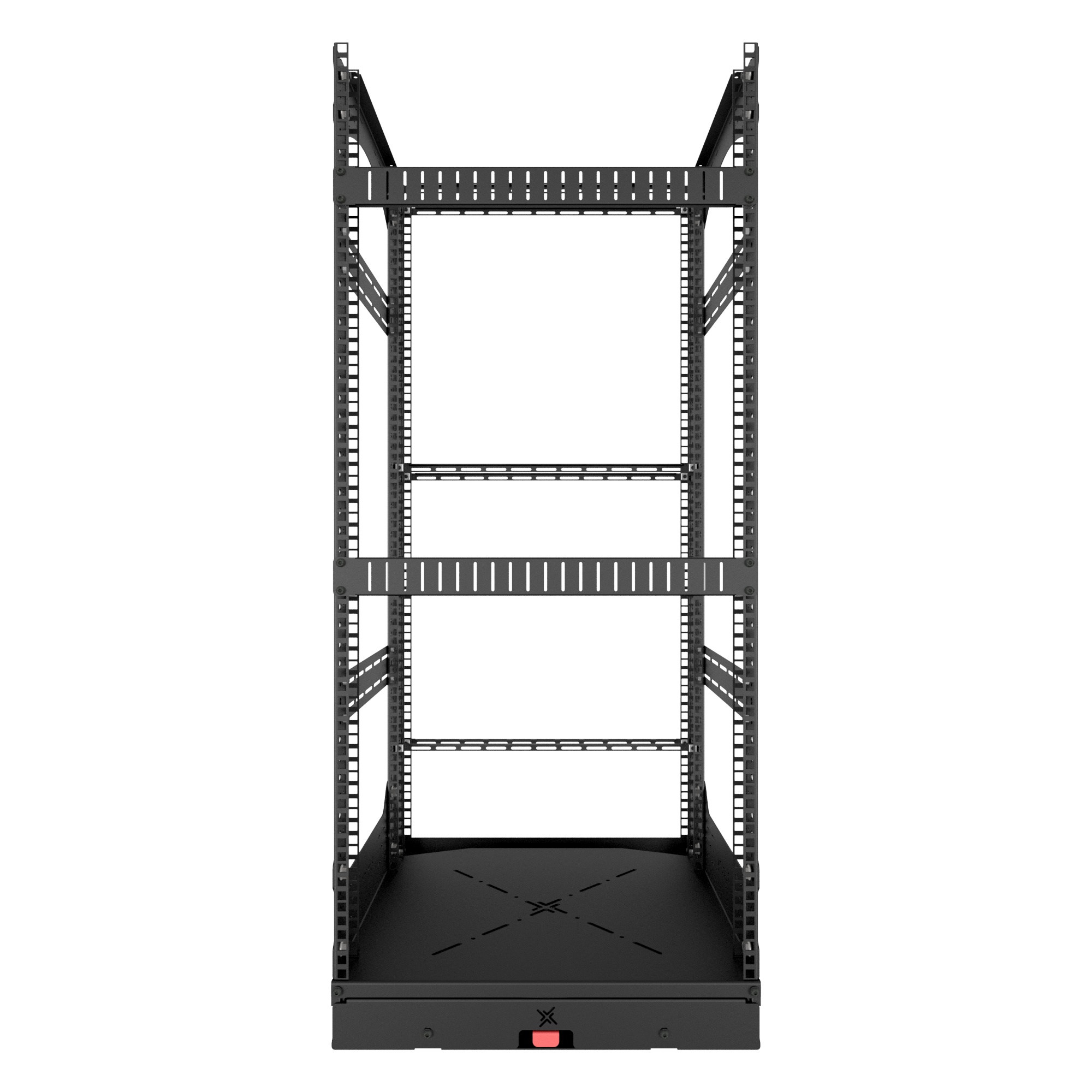

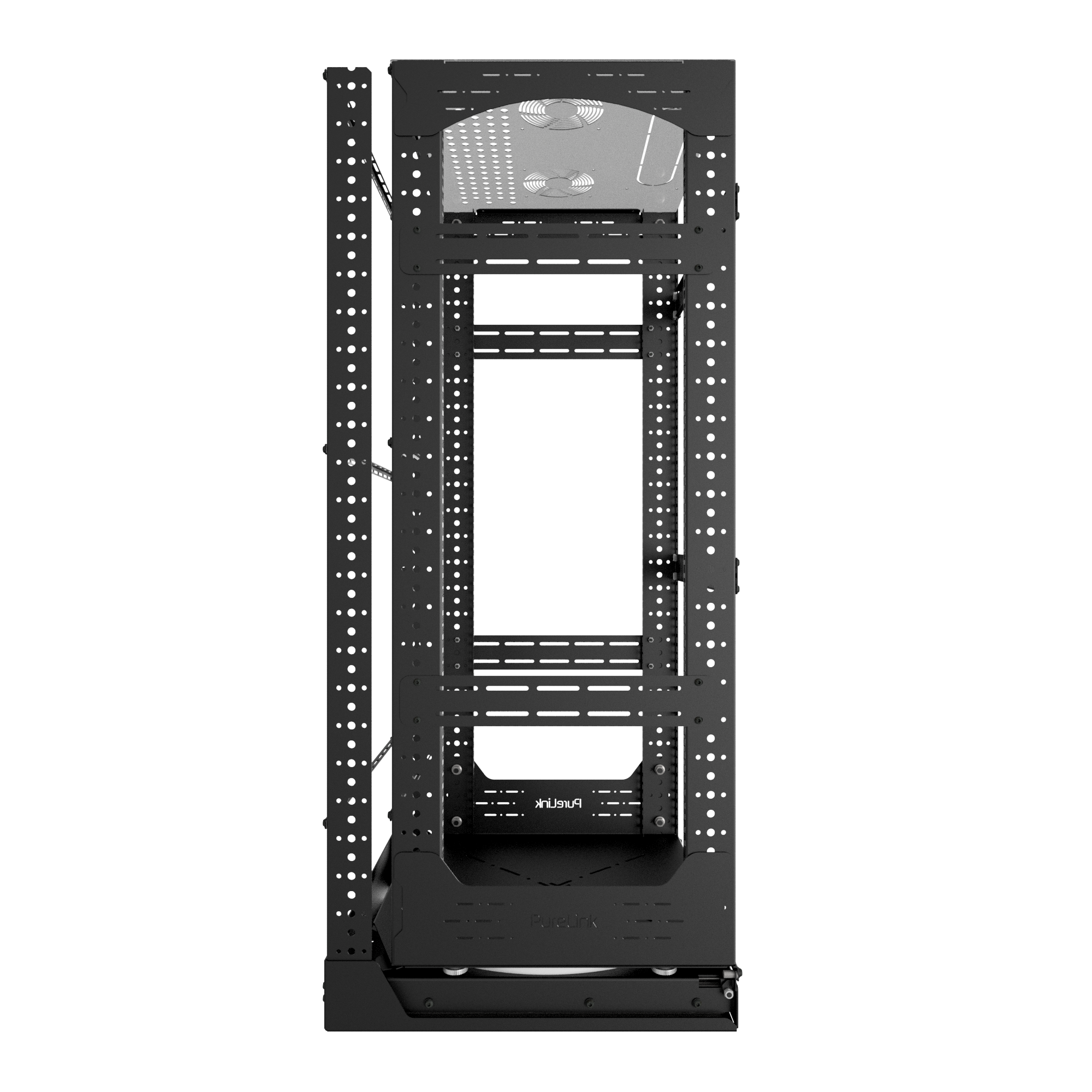

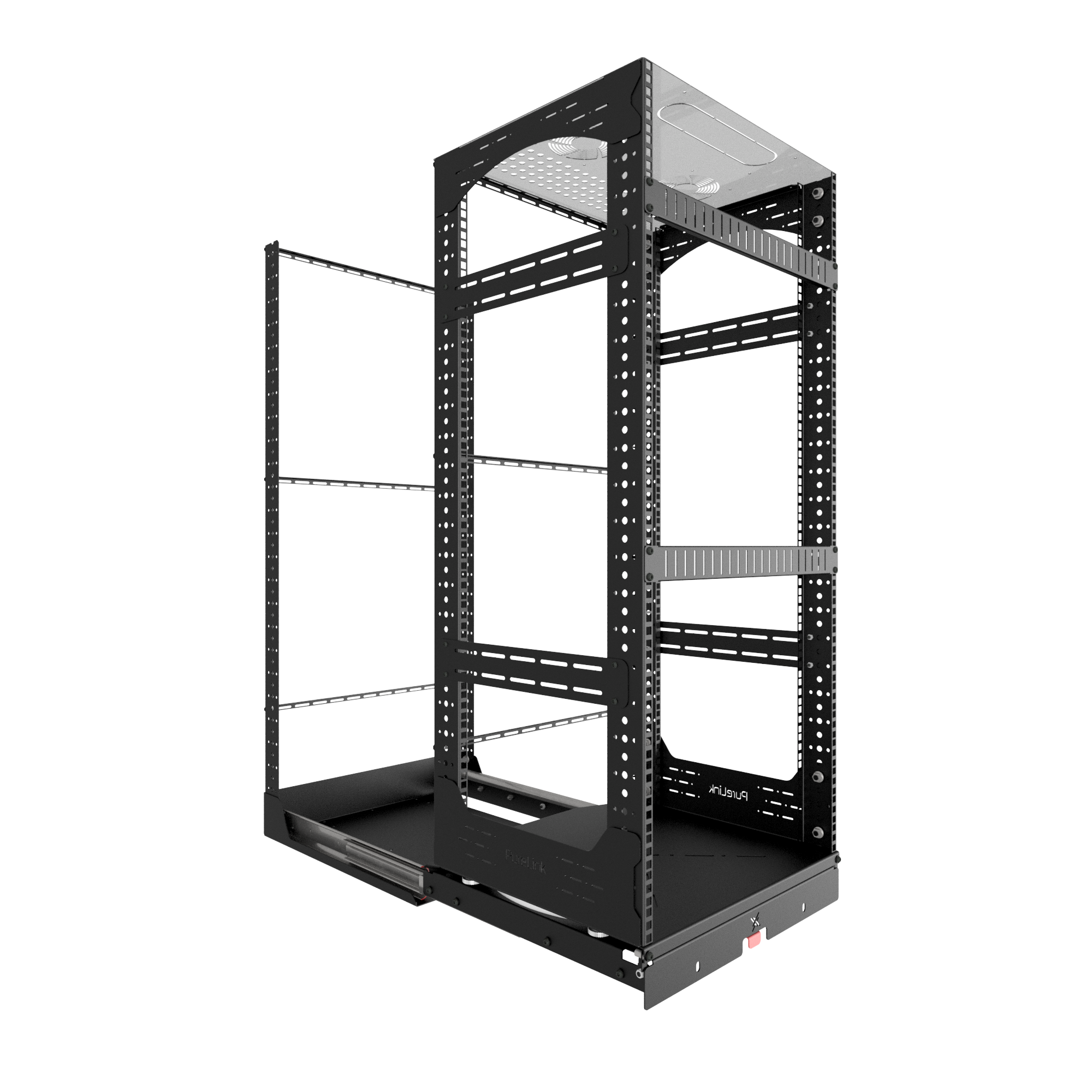

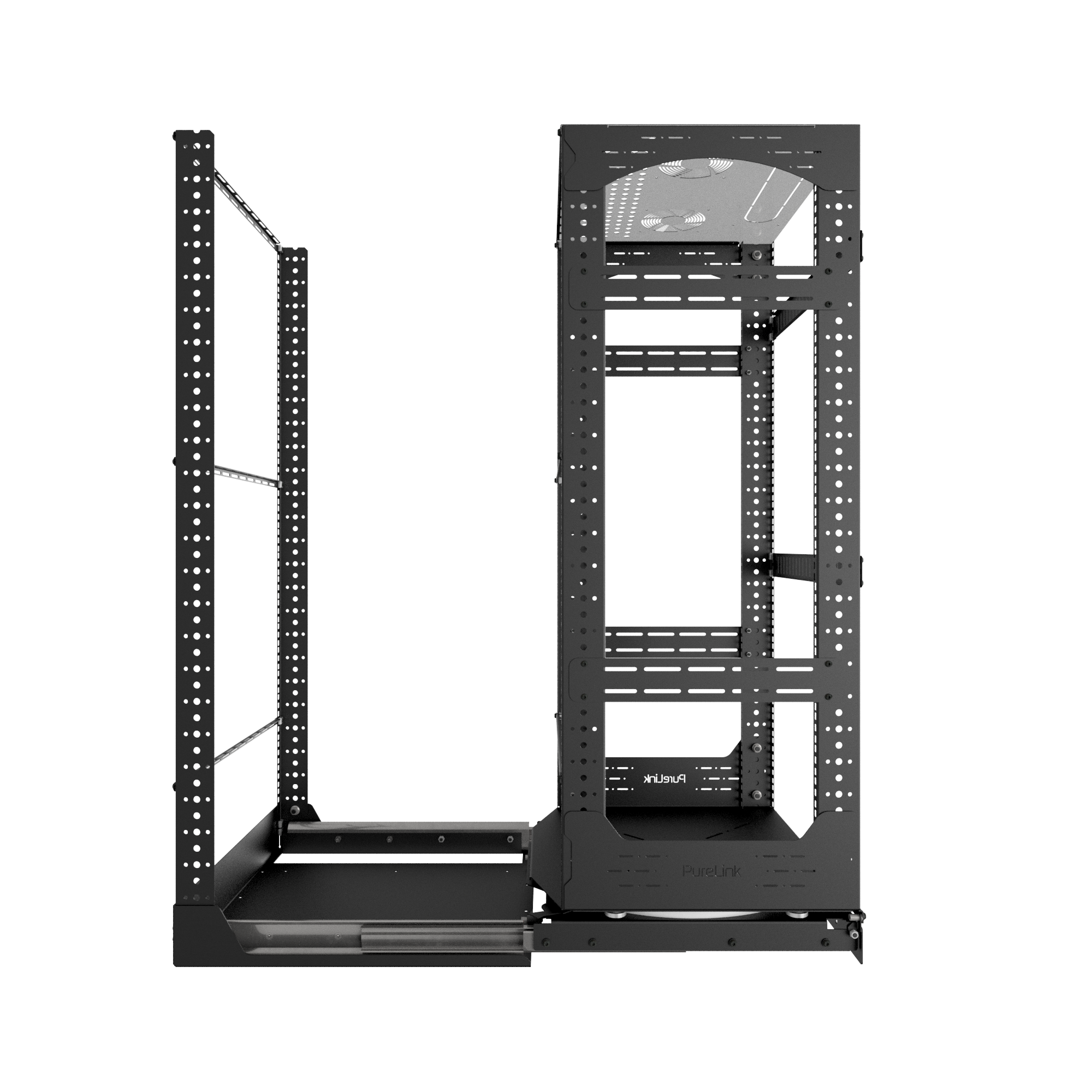

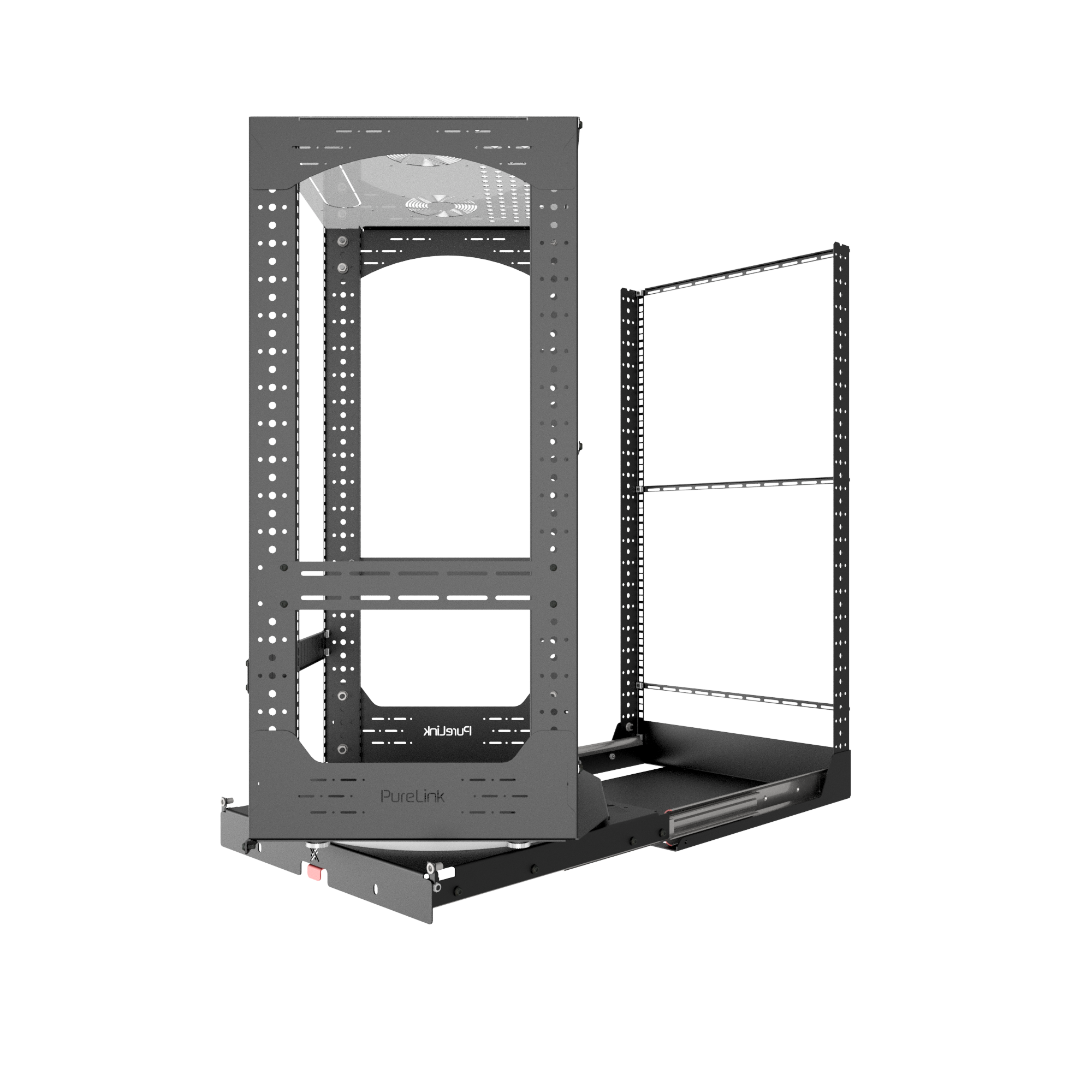

MPR LC130-500

19" Pull-Out and Rotating Open Frame Rack

The MPR LC130 is our floating slide-out and rotating open frame 19-inch rack. It has a storage capacity for AV and ITC systems up to 42 rack units and 120 kg of load capacity. Features two security lock systems that prevent the rack from accidentally sliding back or rotating during use. Move the rack's base out and lock it in place, then flip it around 180° for easy access during installation or maintenance.

Technical Specifications

Rack Units
Available in 6-42 RU
Width
490mm
Depth
498mm
Load Capacity
120kg

Key Features

  • 19" floating slide-out and rotating rack
  • Capacity up to 42 rack units
  • Robust 2 mm steel sheet base
  • Load capacity up to 120 kg
  • Rotation lock system
  • Locks in the extended position for simplified equipment integration
  • Pre-assembled sliding base
  • Flat pack delivery
  • Cable organizer L profiles and plates included
  • Top panel with ventilation design available on request
  • Rack rails available with threaded holes

Available Configurations

ModelRack UnitsDepthWidthHeightLoad CapacityAction
V-MPR-LC130-500-66 RU498mm490mm348mm120 kg
V-MPR-LC130-500-88 RU498mm490mm436mm120 kg
V-MPR-LC130-500-1010 RU498mm490mm525mm120 kg
V-MPR-LC130-500-1212 RU498mm490mm614mm120 kg
V-MPR-LC130-500-1414 RU498mm490mm704mm120 kg
V-MPR-LC130-500-1616 RU498mm490mm792mm120 kg
V-MPR-LC130-500-1818 RU498mm490mm882mm120 kg
V-MPR-LC130-500-2020 RU498mm490mm970mm120 kg
V-MPR-LC130-500-2424 RU498mm490mm1148mm120 kg
V-MPR-LC130-500-2828 RU498mm490mm1327mm120 kg
V-MPR-LC130-500-3232 RU498mm490mm1505mm120 kg
V-MPR-LC130-500-3636 RU498mm490mm1684mm120 kg
V-MPR-LC130-500-4040 RU498mm490mm1862mm120 kg
V-MPR-LC130-500-4242 RU498mm490mm1950mm120 kg

Need a Custom Configuration?

Our engineering team can modify any product to meet your specific requirements.
