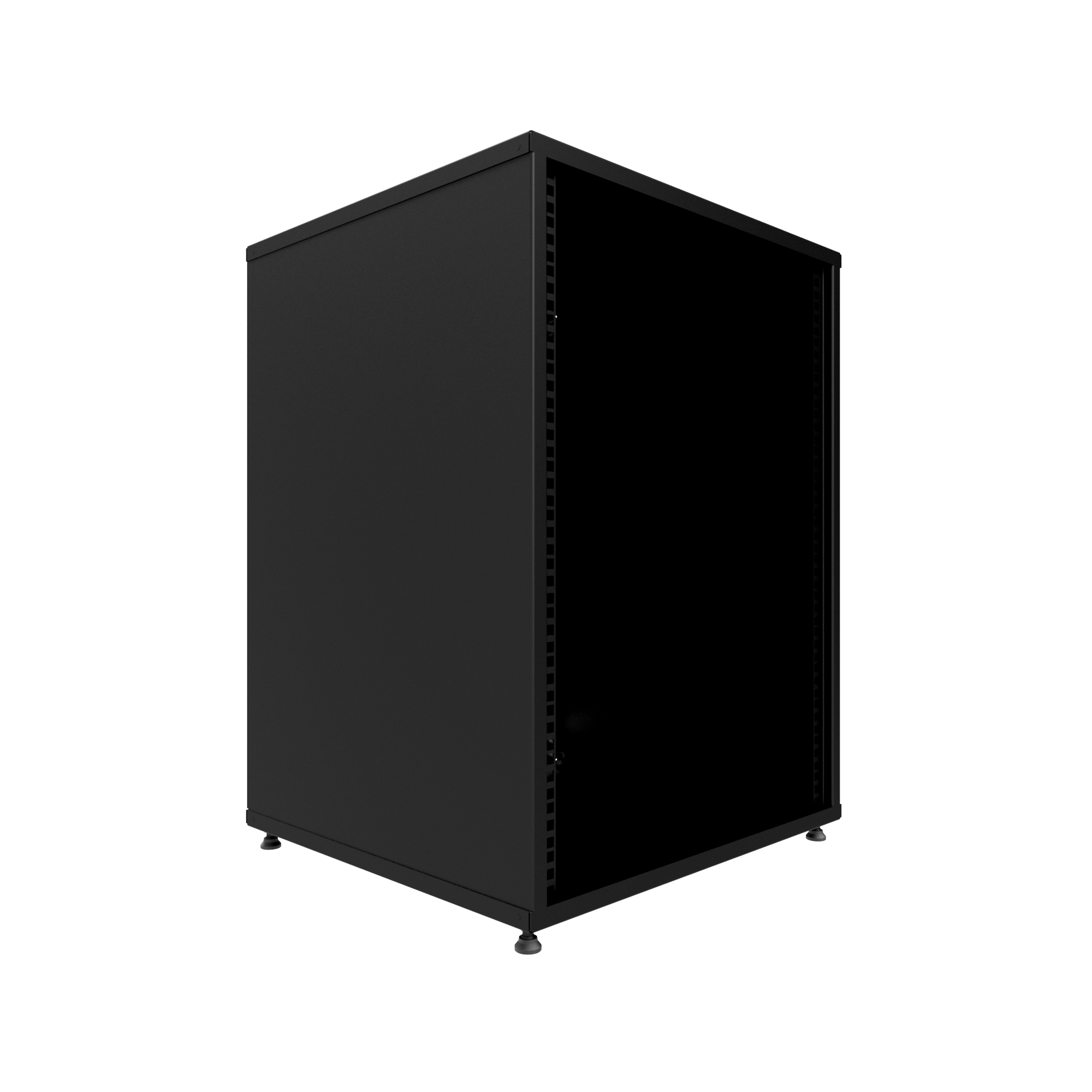

CBN-500
19" Cabinet Rack
The 19" Closed Frame Rack is a robust and versatile solution designed to house and protect up to 18 units of 19" equipment with maximum load capacity of 200 kg. Constructed from 1.5 mm and 2 mm thick steel with black powder coating. Fast assembly in less than 15 minutes.
Technical Specifications
- Rack Units
- Available in 6-18 RU
- Width
- 540mm
- Depth
- 500mm
- Load Capacity
- 200kg
Key Features
- Stores up to 18 units of 19" equipment
- Maximum load capacity of 200 kg
- Closed frame to protect internal equipment
- Punched square holes for snap-in cage nuts
- 1.5 and 2 mm thick steel frame
- Removable rear panel for easy installation
- Cable entrance on rear bottom
- Leveling feet in technopolymer
- Optional castors available
- Easy assembly in less than 15 minutes
- Flat pack delivery
Available Configurations
| Model | Rack Units | Depth | Width | Height | Load Capacity | Action |
|---|---|---|---|---|---|---|
| V-CBN-500-6 | 6 RU | 500mm | 540mm | 332mm | 200 kg | |
| V-CBN-500-9 | 9 RU | 500mm | 540mm | 466mm | 200 kg | |
| V-CBN-500-12 | 12 RU | 500mm | 540mm | 600mm | 200 kg | |
| V-CBN-500-15 | 15 RU | 500mm | 540mm | 734mm | 200 kg | |
| V-CBN-500-18 | 18 RU | 500mm | 540mm | 866mm | 200 kg |
